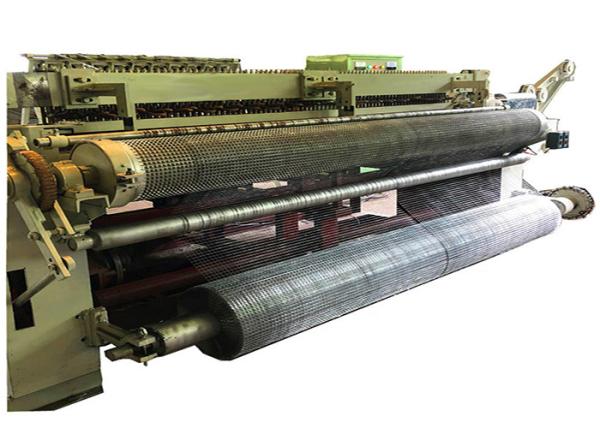

High Speed Electric Wire Fence Welding Machine / Wire Mesh Equipment 380V
High Speed Electric Wire Fence Welding Machine / Wire Mesh Equipment 380V
Specifications
Brand Name :
JingLian
Model Number :
ZWJ--11
Certification :
IATF16949:2016
Place of Origin :
Hebei, China (Mainland)
MOQ :
1 Set
Payment Terms :
T/T, L/C
Supply Ability :
100 Sets/month
Delivery Time :
25 Days
Packaging Details :
Nude packing
Type :
Fully Automatic
Color :
Blue
Weight (KG) :
4500
Mesh hole size :
1/2, 1, 2, 3, 4 Inches
Voltage :
380V
After-sales service provided :
Engineers available to service machinery overseas
Description

High Speed Electric Welded Wire Mesh Welding Machine

Description of machine:

Welded wire mesh machine, also called welded roll mesh machine, electric welded mesh machine. Our roll welding wire mesh machine is featured by wire coil feeding and invert speed control. It is used to make wall mesh,construction mesh,animal cage, mining etc.

Mechanical features and advantages

1 Both of the longitude wire and cross wire are fed from wire coils automatically.
2 The raw material is suitable for low-carbon steel wire (black wire) and galvanized wire.
3 The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.
4 The welding time and welding current can be adjusted on the control panel to adjust the welding degree.
5 The welding transformers have 8 degrees and can be adjusted for different wire diameters.
6 The mesh roll length can be set by counter switch on the control panel.
Mechanical parameters
Type KY-DHW-1 KY-DHW-2 KY-DHW-3
Wire diameter 0.4-0.65mm 0.65-1.8mm/0.8-2mm 1.0-2.2mm/1.2-2.5mm
Aperture/pitch

1/4″,1/2″

6.25,12.5mm

1/2″,1″,2″,3″,4″

12.5,25,50,75,100mm

1″,2″,3″,4″

25,50,75,100mm
Mesh width Max.1m,1.2m Max.1.2m,1.5m,2m Max.1.2m,1.5m,2m
Motor 2.2kw 2.2kw;4kw 4kw;5.5kw
Welding speed Max.75 rows/min Max.120-180 rows/min Max.80-120 rows/min
Transformer 50kva∗3 60kva∗4;60kva∗5;60kva∗7 70kva∗5/70kva∗6/70kva*7
Weight 1.5T 2T/2.5T 2T/2.5T/3T/3.5T
