Specifications
Model Number :
HH-candle filter
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
10 pcs cartridge
Price :
contact with us
Payment Terms :
L/C, T/T, Western Union, Alipay
Supply Ability :
1000 pcs per 30 days
Delivery Time :
within 7 work days
Packaging Details :
wooden case, could be customized
Name :
Stainless Steel Pleated Cartridge Fliter
Material :
SS304, SS316, SS316L
Filter rating :
1–300 μm
Filter efficiency :
≥ 95%
Operating pressure :
30MPa
Operating temperature :
≤600°C
Installing form :
standard (using O-ring to seal), thread, tie rod, flange, fast interface
Customized :
now we have 12 types, other can be done
Description

Stainless Steel Pleated Cartridge for for Polymer Melt Filtration

Quick details of Stainless Steel Pleated Cartridge

  • Material:SS304, SS316, SS316L.
  • Filter rating:1–300 μm.
  • Filter efficiency:≥ 95%.
  • Operating pressure:30 Mpa.
  • Operating temperature:≤600°C.
  • Main filter media:stainless steel sintered fiber web and stainless steel wire woven cloth.
  • Installing form:standard (using O-ring to seal), thread, tie rod, flange, fast interface.

Description of Stainless Steel Pleated Cartridge

Stainless steel pleated cartridge is made of stainless steel woven mesh or stainless steel sintered felt after pleating and welding. It is generally installed in melt filters to remove impurities from polymer melts in chemical fiber, textile and plastics industries, therefore, it is also known as polymer candle filter or polymer melt candle filter.

  • According to its filtration layer, it is divided into pleated wire mesh candle filters and pleated sintered fiber candle filters.
  • The filter area of the pleated cartridge is 5-10 times as large as the traditional cartridge filter, which makes it dirt holding capacity and service life greatly improved.
  • Filtration efficiency up to 95%
  • Suitable for melt filter or high pressure, highly corrosive, high viscous or radioactive applications.
  • Stainless steel construction can be reused after backwashing or ultrasonic cleaning.

Our cartridge types

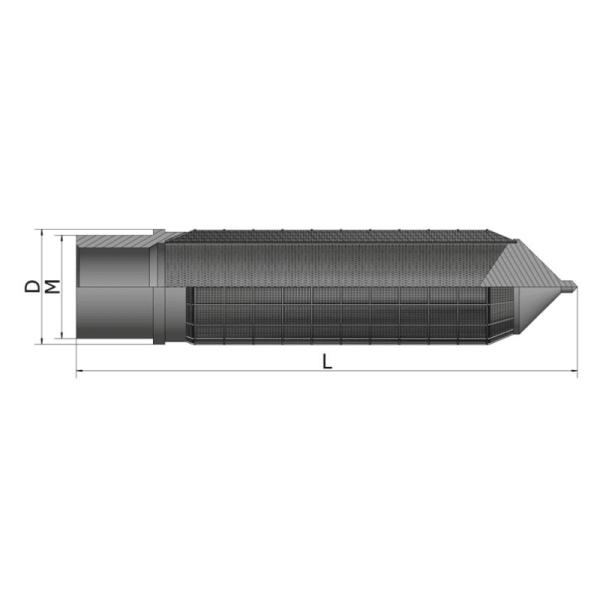

Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 1: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-86/200 200 86 M65 × 2P 0.2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-86/350 350 0.35
SSPC-86/500 500 0.5
SSPC100/800 800 100 M80 × 2P 1

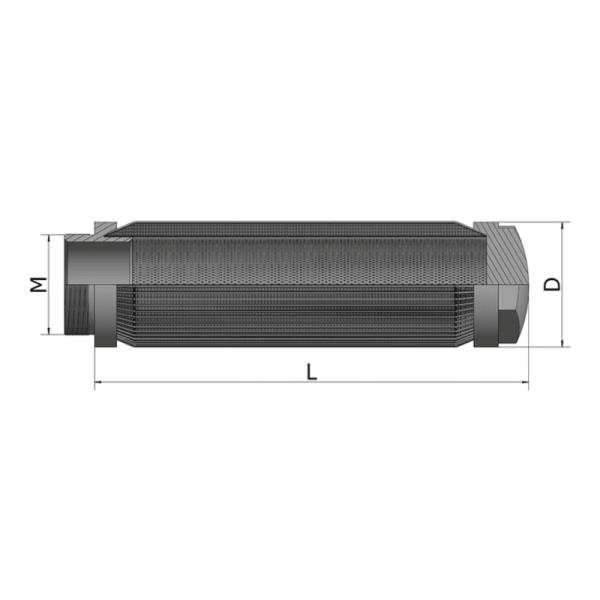

Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 2: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-65/250 250 65 226, 223, 220, 215 0.135 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-65/500 500 0.38
SSPC-70/750 750 70 0.42
SSPC-70/750 750 70 0.6
Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 3: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-35/102 102 35 M18, M20 × 2.5, M20 × 1.5, NPT1", 3/4-16 0.026 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-35/207 207 0.07
SSPC-35/210 210 0.07
SSPC-35/242 242 0.08
SSPC-35/425 425 0.15
SSPC-35/485 485 0.2
Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 4: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-62/180 180 62 G1" 0.09 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-86/254 254 86 G2" 0.17
SSPC-86/381 381 0.2
SSPC-86/508 508 0.27
SSPC-86/760 760 0.58
Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 5: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-60/1432 1432 60 2" × 12UN-2A 1.015 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-60/1241 1241 0.98
SSPC-60/1025 1025 0.81
Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 6: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
inch inch m2 μm
SSPC-1.75/16.31 16.31 1.75 1.25"-12UNF-2A 0.2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-1.75/18.63 18.63 0.35
SSPC-1.75/31 31 0.5
SSPC-1.75/47 47 1
Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 7: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-45/200 1432 45 1.25"-12UNF, 2"-12UN 1.015 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-45/800 1241 0.98
SSPC-57/1023 1025 57 0.81
Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 8: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-46/965 965 46 1.25"-12UN 0.52 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-50/1020 1020 50 M42 × 2P 0.62
SSPC-60/1020 1020 60 M52 × 2P 0.8
SSPC-60/1210 1210 1
Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 9: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-50/275 275 50 M30 × 1.5P 0.18 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-50/525 525 0.33
SSPC-50/870 870 0.54
SSPC-50/1395 1395 0.8
Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 10: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-60/400 400 45 M33 × 1.5P, M33 × 2P 0.4 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-60/500 500 0.5
SSPC-60/1000 1000 57 1
Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 11: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-62/1195 1195 62 M36 × 2P 0.6 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-62/1395 1395 0.7
Stainless Steel Pleated Cartridge Filter SS304 SS316 SS316L
Table 12: Specification of Stainless Steel Pleated Cartridge
Model L D M Filter Area Filter Rating Filter Media
mm mm m2 μm
SSPC-55/1245 1245 55 M33 × 2P 0.91 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber felt, stainless steel wire cloth
SSPC-55/1247 1247 0.91
SSPC-55/1347 1347 0.95
SSPC-55/1350 1350 0.95
