Stainless Steel Rope Mesh For Zoo Protection
Stainless Steel Rope Mesh For Zoo Protection
Stainless Steel Rope Mesh For Zoo Protection
Stainless Steel Rope Mesh For Zoo Protection
Specifications
Model Number :
HH-SSPROTECTION
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10 square meters
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
5000 rolls per 25 days
Delivery Time :
within 7 work days
Packaging Details :
waterproof paper inner packing,outside carton
Name :
stainless steel rope mesh
Usage :
Zoo Protection
Hole shape :
Diamond Hole
Key words :
Zoo Protecting Mesh
Mesh Opening :
20mm-100mm
Rope diameter :
1.2mm-3.2mm
Surface treatment :
silver or black oxide finish
Width standard :
1500mm, others can be customized
Description

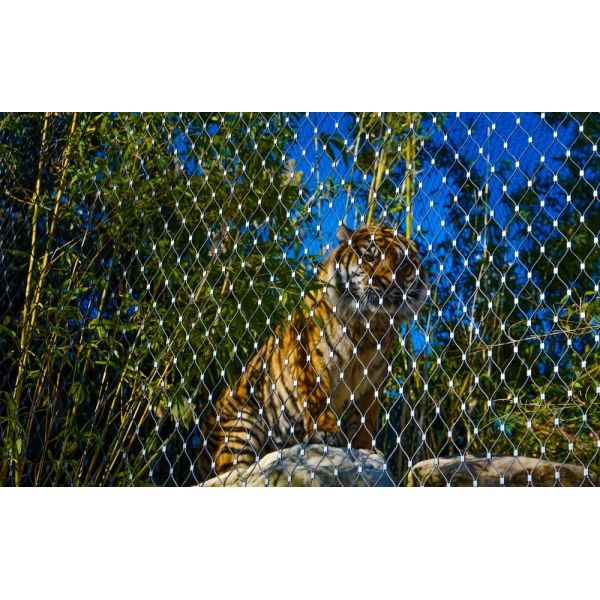

stainless steel rope mesh for zoo mesh animals protection

Quick details of stainless steel rope mesh

The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7 x 7 and 7x 19,stainless steel cable to create diamond openings from 1” through 4”(1"*1", 2‘’*2‘’,3‘‘*3‘’,4‘’*4”)

Material: stainless steel 304, 304L, 316, 316L.

Surface treatment: silver or black oxide finish.

Construction of wire cable: 7 × 7, 7 × 19.

Cable diameter: 1.2–3.2 mm.

Mesh opening sizes: 20–100 mm.

Stainless steel rope mesh generally consists of two categories. The stainless steel knotted rope mesh is very similar with the ferrule rope mesh. The difference is that stainless steel wires are winded and interwoven to form a knotted structure instead of using Ferrule. The knotted structure is solid and unmovable, which ensures the uniformity of the mesh openings. The mesh wires are stretched to create an angle of 90°. The mesh is often used for aviary mesh or zoo mesh

Specification details of stainless steel rope mesh

Rope Structure Rope Diameter Opening Size Breaking Force
Inch mm Inch mm KN
7 × 19 1/8 3.2 3.6″ × 3.6″ 90 × 90 7.38
7 × 19 1/8 3.2 3″ × 3″ 76 × 76 7.38
7 × 19 1/8 3.2 2″ × 2″ 51 × 51 7.38
7 × 7 3/32 2.4 4″ × 4″ 102 × 102 4.18
7 × 7 3/32 2.4 3.6″ × 3.6″ 90 × 90 4.18
7 × 7 3/32 2.4 3″ × 3″ 76 × 76 4.18
7 × 7 3/32 2.4 2.4″ × 2.4″ 60 × 60 4.18
7 × 7 3/32 2.4 2″ × 2″ 51 × 51 4.18
7 × 7 5/64 2 3″ × 3″ 76 × 76 3.17
7 × 7 5/64 2 2.4″ × 2.4″ 60 × 60 3.17
7 × 7 5/64 2 2″ × 2″ 51 × 51 3.17
7 × 7 5/64 2 1.5″ × 1.5″ 38 × 38 3.17
7 × 7 1/16 1.6 3″ × 3″ 76 × 76 2.17
7 × 7 1/16 1.6 2″ × 2″ 51 × 51 2.17
7 × 7 1/16 1.6 1.5″ × 1.5″ 38 × 38 2.17
7 × 7 1/16 1.6 1.2″ × 1.2″ 30 × 30 2.17
7 × 7 1/16 1.6 1″ × 1″ 25 × 25 2.17
7 × 7 3/64 1.2 2″ × 2″ 51 × 51 1.22
7 × 7 3/64 1.2 1.5″ × 1.5″ 38 × 38 1.22
7 × 7 3/64 1.2 1.2″ × 1.2″ 30 × 30 1.22
7 × 7 3/64 1.2 1″ × 1″ 25 × 25 1.22
7 × 7 3/64 1.2 0.8″ × 0.8″ 20 × 20 1.22

Features of stainless steel rope mesh

1)Stainless steel rope provides the highest corrosion resistance.
2)Elegant and robust of rope mesh
3)Light, robust yet transparent.
4)UV and weather resistant finished treatment for rope mesh
5)rope mesh is Flexible and pliable.
6)Climb resistant and prevents a secure foothold.
7)The minimum visual impact on views.
8)Good price-benefit-ratio from huihao company
9)Easy installation and low maintenance.
10)Weave opening, meet any exact specification.
