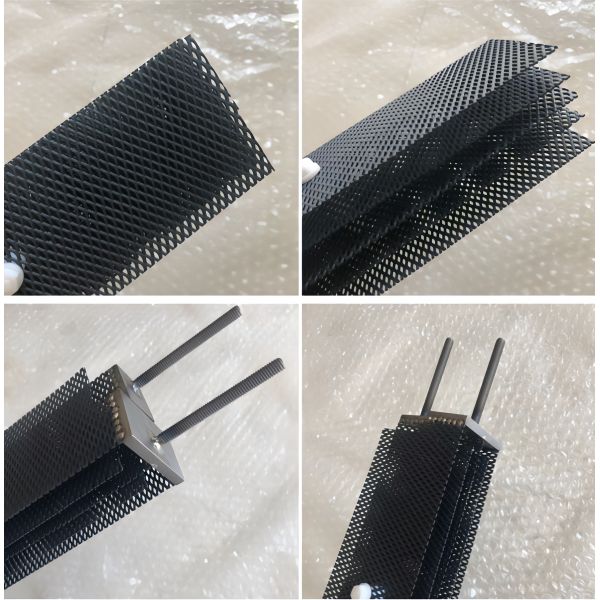

Electrode Anode Titanium Strech Diamond Mesh
Electrode Anode Titanium Strech Diamond Mesh
Electrode Anode Titanium Strech Diamond Mesh
Electrode Anode Titanium Strech Diamond Mesh
Electrode Anode Titanium Strech Diamond Mesh
Electrode Anode Titanium Strech Diamond Mesh
Specifications
Model Number :
HH-TIANODE
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
1 square mester mesh
Price :
contact with us
Payment Terms :
L/C,T/T,Western Union,alipay
Supply Ability :
3000 mesh sheet per 20 days
Delivery Time :
within 7 work days
Packaging Details :
proof paper + woodencase
Name :
Titanium Strech Diamond Mesh
Mesh open :
0.2mm×0.4mm to 50*100mm
Current density :
≤2000A/M²
Dimension and Shape :
Plate, mesh, rod or customized
Temperature :
<60℃
Ti Content (%) :
99.9%
Mesh thickness :
0.5-1.5mm
Sample :
Free sample available
Description

Electrode Anode Titanium Strech Diamond Mesh

Quick details of Titanium Strech Diamond Mesh

1)Current density<2000A/M2
2)Temperature<85°C
3)Electrolyte:H2SO4 or HNO3, Neutral
4)PH 0.1~14
5)Max content of Fluoride ion is 200PPM
6)Homogenous degree: >=85%
7)Oxygen-liberated potential <=1.8V

Thickness
0.03mm to 1mm or customized
Opening
0.2mm×0.4mm to 50*100mm
Width
100mm 150mm 200mm 300mm 400mm 1000mm 1200mm or customized
Length
18 20 30 meters roll or customized

Description of Titanium Strech Diamond Mesh

Titanium has two most useful properties, unique corrosion resistance and the highest strength-to-weight ratio of any metal. Titanium materials can be used in many fields, such as chemical and electronic industry. Titanium Strech Diamond Mesh is mostly used as anode and filter element in chlor-alkali industry and other chemistry industry.

Titanium Strech Diamond Mesh is made from stamping sheets by ASTM B 265 commercially pure Gr1 and Gr2. Titanium alloy Gr5 is too hard with high strength to be stamped into mesh. The width and the length of the mesh can be provided as the same the the sheet.

Specification details of Titanium Strech Diamond Mesh

Name

titanium strech diamond mesh ( diamond mesh )

Condition

Annealed

Material

CP titanium Gr1 Gr2

processing

Stamping

Sheet thickness

0.3mm up to 0.8mm

0.8mm up to 2.0mm

Width * length

1000mm x 2000mm

1000mm x 3000mm

mesh open size

3x2mm 3x4mm 4.6x2.5mm 6x3mm 10x5mm 12.5x6mm 12.4x 4.5mm 13x7mm

other mesh open size can be customized.

mesh stem

0.2mm upto 2.0mm

Applications of Titanium Strech Diamond Mesh

1.Drinking Water electrolysis

2.HIO Generator

3.Electroplating

4.Electrolytic oreanic synthesis

5.Electrodialysis

6.swimming pool disinfectant

7.perchlorate protection

8.Cathodic protection

9.chlor-alkali industry,ect.
