Screw & Washer Assembly Machine
Screw & Washer Assembly Machine
Screw & Washer Assembly Machine
Screw & Washer Assembly Machine
Screw & Washer Assembly Machine
Screw & Washer Assembly Machine
Screw & Washer Assembly Machine
Screw & Washer Assembly Machine
Specifications
Brand Name :
DURA
Model Number :
WS-S
Place of Origin :
Jiangsu, China
MOQ :
1Set
Price :
to be negotiated
Payment Terms :
L/C, D/P, T/T
Supply Ability :
50 Sets Per Month
Delivery Time :
1 Set/30 Days; ＞1 To Be Negotiated
Packaging Details :
Plywood Case
Name :
Screw & Washer Assembly Machine
Motor Power :
3 1/4 HP
After-sales Service Provided :
Online Support, Field Installation, Commissioning and Training
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Machinery Test Report :
Provided
Warranty of Core Components :
One Year
Function :
Assembling Screw and Rubber Washer/Rubber Bonded Steel Washer
Description

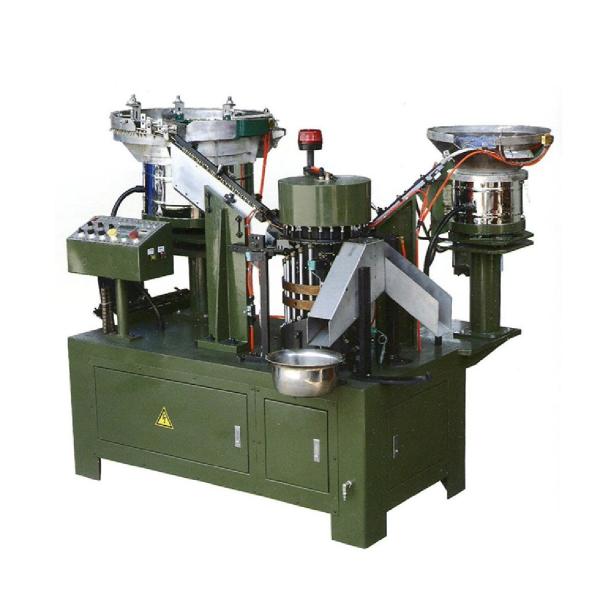

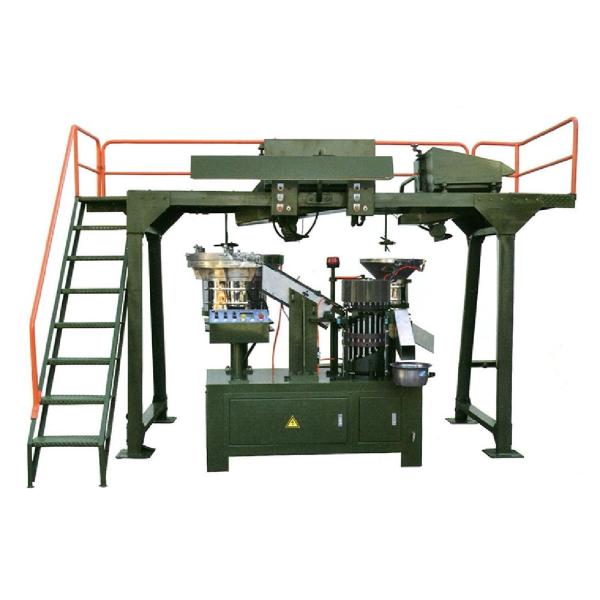

Screw & Washer Assembly Machine

Introduction

This machine is for for assembling screw and rubber washer/rubber bonded steel washer.

Model Unit WS-S
Scew Type #8-#14
Screw Length mm 19-130
Washer Size PVC10, PVC11, D12, D14, D16, D19
Control DC24V PLC programable controller & inverter
Motor HP 3 1/4
Screw Vibrator mm Ø750
Washer Vibrator mm Ø600
Capacity pcs/min 80-600
Weight kg 1140
Dimension of main machine mm 1860*1490*1580
Capacity of feeding system frame kg screw feeder: 250-300kg washer feeder: 100kg

Screw & Washer Assembly MachineScrew & Washer Assembly Machine
