Automatic Computerized Wire Stripper Wire Stripper Wire Stripper Wire Stripper Wire Stripper Wire Stripper Wire Stripper

Specifications

Brand Name :

ELITE

Model Number :

JR-003

Place of Origin :

China

MOQ :

3 pcs

Price :

TBA

Payment Terms :

T/T

Supply Ability :

10 pcs / day

Delivery Time :

3 weeks

Packaging Details :

Wooden Case

Machine name :

Automatic computerized peeling and thread cutting machine (2.5 square meters)

Conduit diameter :

1.5-2.5mm

Production efficiency :

3000-8000 PCS / h

Cutting wire core :

0.1-2.5 M2

Weight :

25kg

Remark function :

Incoming line, outgoing line, sample, timing start, output can be set, tangent speed can be adjusted

Cutting length :

1-99999.99mm

Dimensions :

400*300*330mm

Stripping Length :

10mm for head and 10mm for tail

Blade material :

Imported high speed steel, tungsten steel

Pulse equivalent :

No error within 2m

Intermediate stripping :

Paragraph 15

Driving mode :

Four wheel simultaneous drive

Accuracy of incoming and outgoing motor :

Silent mixing motor 0.01mm per step

Power supply :

AC175V-260V50/60HZ

Cutting tolerance :

Within 0.002 * l

power :

120W-220W

Line pressure adjustment :

Have

Description

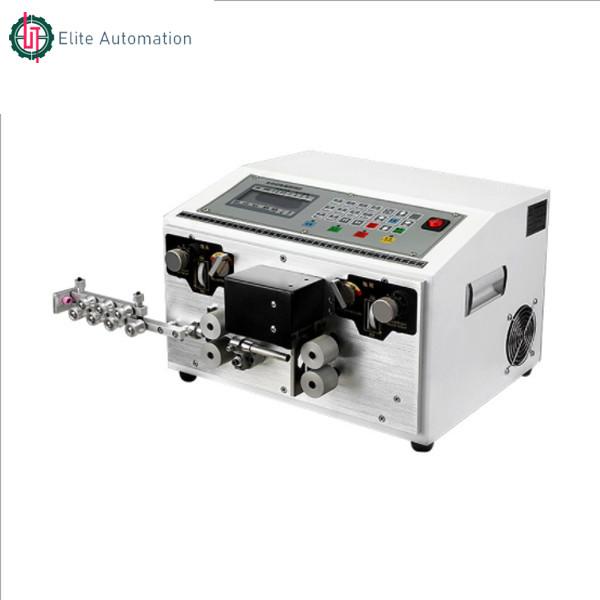

Computerized peeling and thread cutting machine

The machine is suitable for a variety of wires, such as electronic wire, FEP wire, silica gel wire, glass fiber wire, coaxial line, isolation wire, sleeve, etc. Function: realize the full stripping, semi stripping and medium stripping of wire. The machine uses a fully automatic moving tool holder, four wheels are driven at the same time, the gear is cut off, the knife cut is neat, and the stripping quality is stable. Led dual language (Chinese / English) setting, simple operation, intelligent setting and flexible replacement. Seven straighteners are adopted to make the wire more straight and accurate, and improve the work quality and efficiency. Provide a variety of accessories for more convenient use

Machine parameters
Machine name	Automatic computerized peeling and thread cutting machine (2.5 square meters)
Conduit diameter	1.5-2.5mm
Production efficiency	3000-8000 PCS / h
Cutting wire core	0.1-2.5 M2
Weight	25kg
Remark function	Incoming line, outgoing line, sample, timing start, output can be set, tangent speed can be adjusted
Cutting length	1-99999.99mm
Dimensions	400300330mm
Stripping Length	10mm for head and 10mm for tail
Blade material	Imported high speed steel, tungsten steel
Pulse equivalent	No error within 2m
Intermediate stripping	Paragraph 15
Driving mode	Four wheel simultaneous drive
Accuracy of incoming and outgoing motor	Silent mixing motor 0.01mm per step
Power supply	AC175V-260V50/60HZ
Cutting tolerance	Within 0.002 * l
power	120W-220W
Line pressure adjustment	Have
