Automatic Cable Intermediate Partial Stripping Machine Partial Stripping and Wire Range can be customized
Automatic Cable Intermediate Partial Stripping Machine Partial Stripping and Wire Range can be customized
Automatic Cable Intermediate Partial Stripping Machine Partial Stripping and Wire Range can be customized
Automatic Cable Intermediate Partial Stripping Machine Partial Stripping and Wire Range can be customized
Automatic Cable Intermediate Partial Stripping Machine Partial Stripping and Wire Range can be customized
Automatic Cable Intermediate Partial Stripping Machine Partial Stripping and Wire Range can be customized
Specifications
Model Number :
EL-CPSM
Place of Origin :
China
MOQ :
1 pcs
Packaging Details :
Wooden Case
Delivery Time :
2-3 weeks
Payment Terms :
T/T
Cycle time :
3-4 seconds
Wire range :
0.5-4.0 mm2 (can be customized)
Partial stripping length :
20mm (can be customized)
Distance between stripping to wire end :
more than 100mm (can be customized)
Air pressure range :
0.5-0.8Mpa
Dimensions :
W2000xD500xH900mm
Description

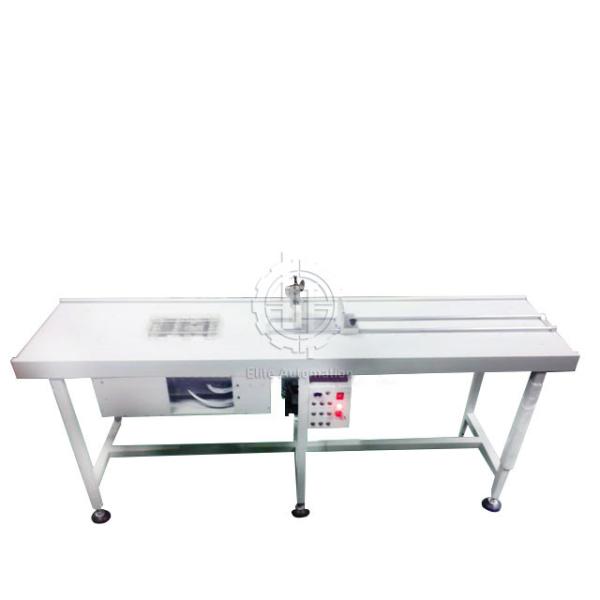

Automatic Cable Intermediate Partial Stripping Machine

This machine is for processing wire intermediate stripping or wire middle peeling. It uses fully pneumatic mechanism to achieve efficient partial stripping and uses programmed PLC for precisely control. The default wire range, it is from 0.5-4.0 mm2 and the default stripping length is 20 mm. The wire range and the partial stripping length can be programmed according to customer’s requirements. The machine is widely use in light industry, toys industry, home appliance industry and electronics industry.

For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.

Cycle time 3-4 seconds
Wire range 0.5-4.0 mm2 (can be customized)
Partial stripping length 20mm (can be customized)
Distance between stripping to wire end more than 100mm (can be customized)
Voltage, frequency 220v-250v, 50Hz
Power 200W
Air pressure range 0.5-0.8Mpa
Voltage fluctuation ±10%
Dimensions W2000xD500xH900mm
Weight 75kg

Automatic Cable Intermediate Partial Stripping Machine Partial Stripping and Wire Range can be customized
