Two Ends 0.7s/Pcs Wire Crimping Machine For 12 Pin Flat Cable
Two Ends 0.7s/Pcs Wire Crimping Machine For 12 Pin Flat Cable
Two Ends 0.7s/Pcs Wire Crimping Machine For 12 Pin Flat Cable
Two Ends 0.7s/Pcs Wire Crimping Machine For 12 Pin Flat Cable
Two Ends 0.7s/Pcs Wire Crimping Machine For 12 Pin Flat Cable
Two Ends 0.7s/Pcs Wire Crimping Machine For 12 Pin Flat Cable
Two Ends 0.7s/Pcs Wire Crimping Machine For 12 Pin Flat Cable
Two Ends 0.7s/Pcs Wire Crimping Machine For 12 Pin Flat Cable
Specifications
Model Number :
EL-FWCM
Function :
both ends crimping, full stripping, half stripping, detection
Applicable wire :
single wire, flat cable (below 12Pin, need to be changed)
Cutting length :
10-600 mm (can be customized)
Capacity :
0.7s/pcs (AWG#20-AWG#32, 40MM, both ends crimping)
Speed :
6000PCS/H (depending on wire)
Stripping length :
full stripping: 1-9MM; half stripping: 3-9MM
Place of Origin :
China
MOQ :
1 pcs
Packaging Details :
Wooden Case
Delivery Time :
2-3 weeks
Payment Terms :
T/T
Description

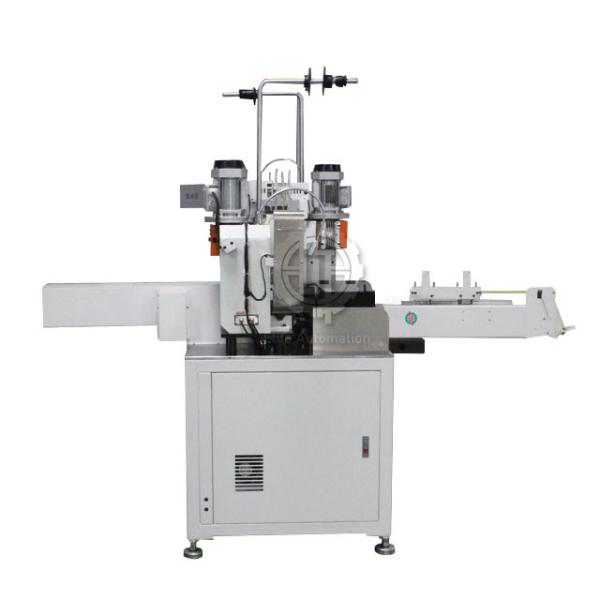

Fully Automatic Five-wire Two Ends Crimping Machine for Single Wire Flat Cable

Complete stripping, half stripping, and both sides crimping are all possible with this fully automatic five-wire processing unit. Single wire, flat cable is the wire that can be used (below 12Pin, need to custom)

Crimping on both sides, absolute stripping, half stripping, and detection

Mitsubishi servo motor, Mitsubishi electronic positioning, SMC cylinder, THK track, Omron and Keyence sensor, high configuration

With a tolerance of 0.1mm, accurate wire outgoing is possible.

Horizontal and straight OTP applicators are compatible.

Both sides of the flat cable can be rotated. The first end is crimped, then the other end is turned 180 degrees and crimped.

Low defect rate, small parts loss, easy repair, low failure rate, long life

For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.

Function both ends crimping, full stripping, half stripping, detection
Applicable wire single wire, flat cable (below 12Pin, need to be changed)
Cutting length 10-600 mm (can be customized)
Capacity 0.7 s/pcs (AWG#20-AWG#32, 40MM, both ends crimping)
Speed 6000PCS/H (depending on wire)
Stripping length full stripping: 1-9MM; half stripping: 3-9MM
Crimping ability mute terminal machine 19600N (2T)
Power supply AC200V 50/60Hz
Air pressure 0.4MAP-0.5MAP
Machine size 2270x1240x1900MM (with prominent position)
Machine weight 460KG

Two Ends 0.7s/Pcs Wire Crimping Machine For 12 Pin Flat Cable
