Choose GR2 series helicopter drone wire dampers to build your own Camera Gimbal!

Xi'an Hoan's GR2 Series wire rope dampers are designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the cameras as well as airborne digital cameras.

There are 4 models included in the GR2 series, which has the max static load from 4.9N (0.50kg) to 12N (1.22kg).

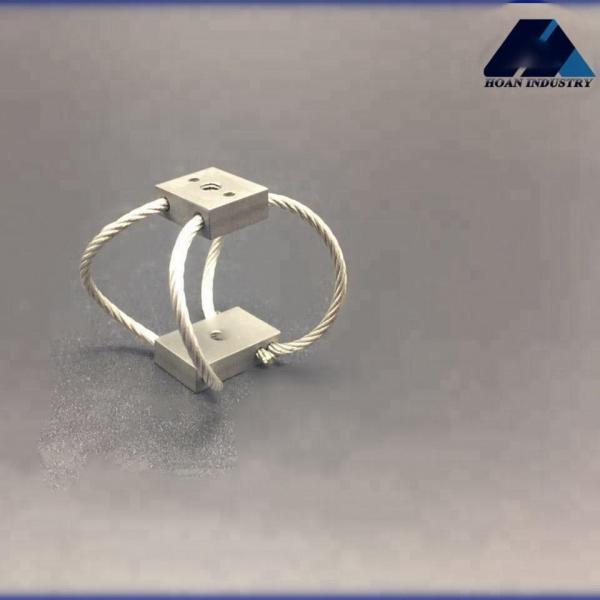

The GR2 Series compact wire rope dampers is made by the 1.6mm diameter wire dampers winded in the two mounting bars, which can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.

• Model Number Code Ordering of GR2 Series:
• Structural Diagram of GR2 Series:
• Dimension of GR2 Series:
• Mounting Options of GR2 Series:
• Compression of GR2 Series:
• 45° Compression of GR2 Series:
• Shear/Roll of GR2 Series:

* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...
