Specifications
Brand Name :
Hoan
Model Number :
JGX-1598D-324B
Certification :
ISO9001:2015
Place of Origin :
Shaanxi, China
MOQ :
4 piences
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4，pience，7
Delivery Time :
7
Operating Temperature :
-40°C to 80°C
After Warranty Service :
Online support
Load Capacity :
100kg
Wire Rope Construction :
7x7 or 7x19
Shock Rsistance :
20g/11ms
Axial Stiffness :
50N/mm
Material :
Stainless Steel
Marketing Type :
Hot Product 2023
Design Style :
Industrial
Working Temperatu :
: -55 ~ +120
Structure :
Helical
Feature :
Vibration isolation
Characteristic :
wide working frequency, long li
Type :
SHOCK ABSORBER
Working Temperature :
-55~120
Description

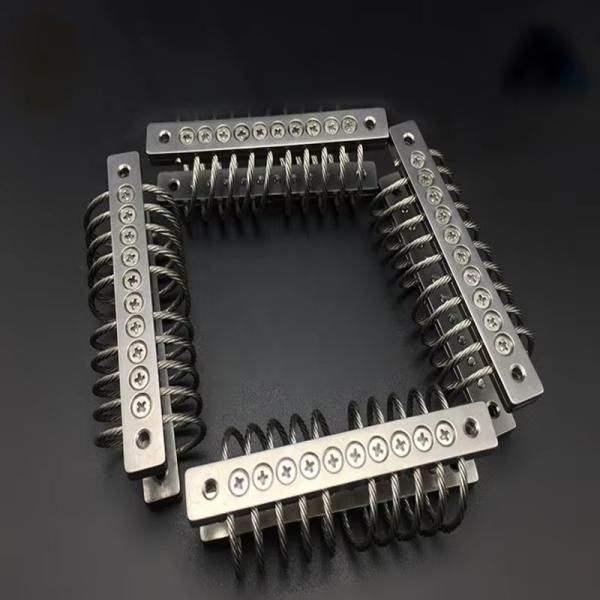

JGX-1598 Series

The main component of JGX-1598 series shock absorbers is high-quality stainless steel stranded cable. These cables are carefully calculated and rigorously tested to ensure consistent performance under extreme pressure and vibration. The stainless steel material gives the shock absorber excellent corrosion resistance and durability, allowing it to operate in harsh environments for long periods of time without damage.

The damping function of the shock absorber is another distinguishing feature. Damping is achieved by the relative friction between the strands inside the cable, a mechanism that effectively absorbs and dissipates vibrational energy, reducing the impact of vibration on the system. This damping effect makes the JGX-1598 series shock absorbers excellent in suppressing resonances and reducing noise, which is essential for improving the overall performance of the system.

In the production process, we strictly follow the international quality management system standards to ensure that every production link meets the highest quality standards. From the selection of raw materials to the inspection of finished products, every step goes through strict quality control to guarantee the reliability and durability of the final product.

The successful application of JGX-1598 series shock absorbers is due to its excellent technical performance and customer service. We provide comprehensive technical support and consulting services to help customers choose the best product for their needs. At the same time, we also provide customized solutions to meet the specific requirements of customers in special application environments.

Superior Noise Reduction And Vibration Control Wire Rope Vibration Isolator With JGX-1598 Series Damping Function

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(KN/m)

Ks(shock)

(Kn/m)
1 JGX-1598D-657B 657 31.8 1676 849
2 JGX-1598D-557B 557 38.1 1259 609
3 JGX-1598D-515B 515 41.9 1105 504
4 JGX-1598D-428B 428 49.5 821 356
5 JGX-1598D-358B 358 58.4 616 252
6 JGX-1598D-324B 324 67.3 511 196
7 JGX-1598D-285B 285 73.7 427 159

Superior Noise Reduction And Vibration Control Wire Rope Vibration Isolator With JGX-1598 Series Damping Function

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(KN/m)

Ks(shock)

(Kn/m)
1 JGX-1598D-657B 463.0 45.7 951 419
2 JGX-1598D-557B 406.2 54.6 741 305
3 JGX-1598D-515B 365.4 59.7 627 250
4 JGX-1598D-428B 304.1 71.1 468 177
5 JGX-1598D-358B 254.2 83.8 350 124
6 JGX-1598D-324B 229.2 94.0 285 98
7 JGX-1598D-285B 201.9 101.6 238 81

Superior Noise Reduction And Vibration Control Wire Rope Vibration Isolator With JGX-1598 Series Damping Function

No. Model

Max Static Load

(kg)

Max Deflection

(mm)

Kv(vibration)

(KN/m)

Ks(shock)

(Kn/m)
1 JGX-1598D-657B 358.6 34.3 524 524
2 JGX-1598D-557B 308.7 40.6 375 375
3 JGX-1598D-515B 267.8 43.2 308 308
4 JGX-1598D-428B 217.9 52.1 215 215
5 JGX-1598D-358B 154.3 61.0 152 152
6 JGX-1598D-324B 124.8 69.9 123 123
7 JGX-1598D-285B 99.9 76.2 98 98
