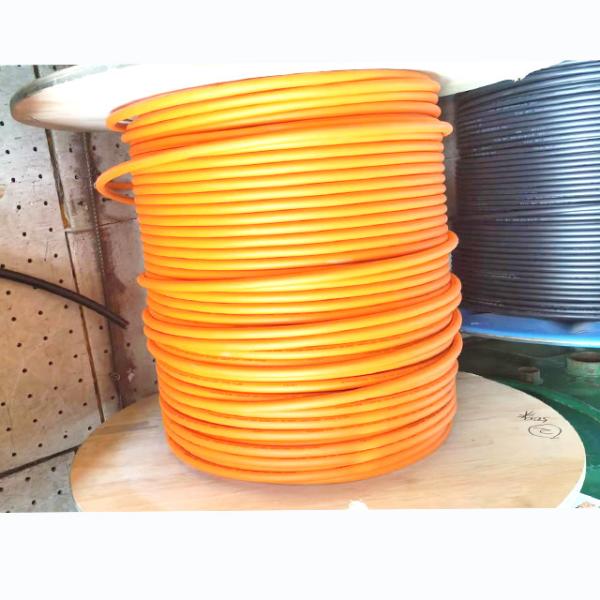

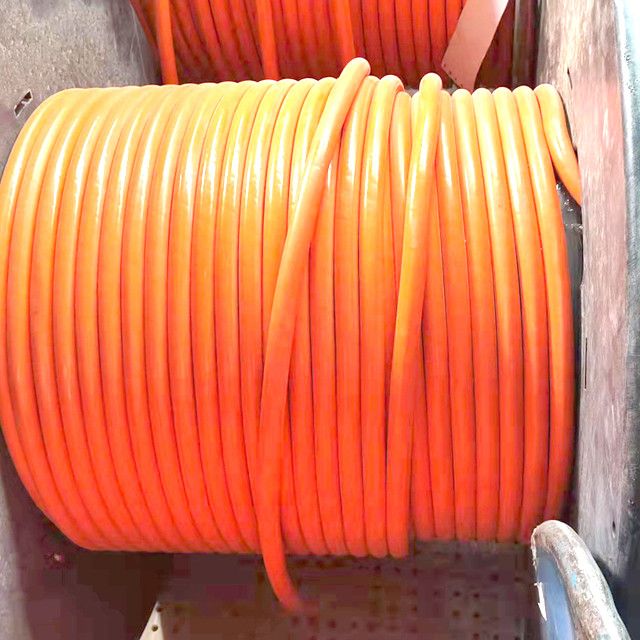

XLPO Flexible Silicone Cable
XLPO Flexible Silicone Cable
XLPO Flexible Silicone Cable
XLPO Flexible Silicone Cable
XLPO Flexible Silicone Cable
XLPO Flexible Silicone Cable
XLPO Flexible Silicone Cable
XLPO Flexible Silicone Cable
Specifications
Brand Name :
Hexie
Model Number :
HV shielding cable
Certification :
UL ROHS
Place of Origin :
Guangdong,China
MOQ :
50
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T,Paypal/Trade Insurance Order
Supply Ability :
500000m per month
Delivery Time :
3-7working days after receive payement
Packaging Details :
100m per roll ,PE film and hard cartons
product name :
Flexible Silicone Cable Stranded Copper XLPO insulation Orange EV Charging Cable
Conductor Material :
Bare Copper
Conductor Type :
Stranded
Insulation Material :
EV HV insulation
color :
orange
packing way :
50m per roll
cable size :
1.5mm²-95mm²
Rated voltage :
DC 1500V
Rated Tempearature :
125℃
Description

Flexible Silicone Cable Stranded Copper XLPO insulation Orange EV Charging Cable

EV Cable ,EVJE, electric vehicles during the charging process,UL Certified

Advantages

a. Custom-made for our customers

b. High-flexible capable of being bent.

c. Oil resistant

d. UV resistant

Application Range

a. Connection wire between EV charging equipment .

b.EV Charging station, Charging pile.

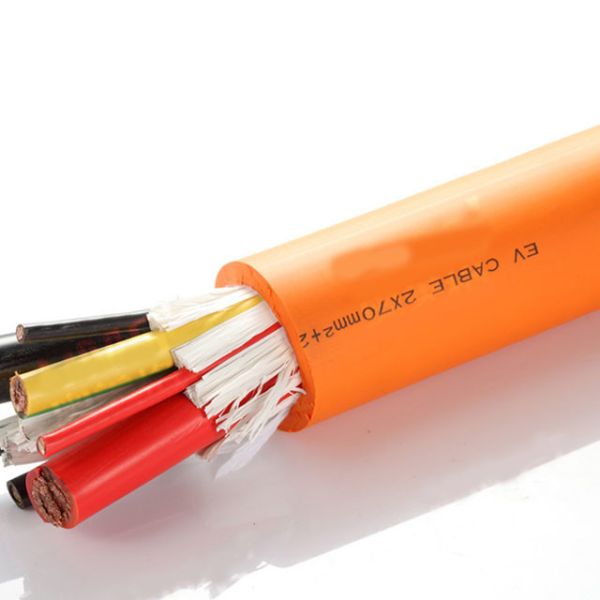

Construction

Conductor : stranded, tinned or bare copper
Insulation: PVC

Assembly:2-6cores

Screened:AL-Mylar

Sheath:PVC

Application standard

UL62

RoHS,REACH Compliant

Technical data
Rated voltage:300V

Rated Temperature:-40℃-105℃

Flame: VW-1, FT1, FT2

Voltage withstand test: 2.0kV/min

Tag:

electric vehicle charging cable,

electric car charging cable,

ev charging wire

  • e of the cable (mm²)
    Conductor Construction
    n/mm
    Stranded Dia.
    mm Max
    Conductor Max Resstance AT 20℃ (Ω/Km)
    Nominal Thickness
    (mm)
    Insulation Dia.
    (mm)
    EV-YJ/SIR 1x1.5(Unshielded)
    49/0.20AS
    1.62
    12.7
    0.60
    2.90±0.15
    EV-YJ/SIR 1×2.5(Unshielded)
    80/0.20AS
    2.06
    7.60
    0.70
    3.50+0.15
    EV-YJ/SIR 1×4(Unshielded)
    133/0.20AS
    2.66
    4.71
    0.80
    4.30±0.20
    EV-YJ/SIR 1x6(Unshielded)
    190/0.20AS
    3.42
    3.14
    0.80
    5.10±0.20
    EV-YJ/SIR 1×10(Unshielded)
    323/0.20AS
    4.40
    1.82
    1.00
    6.50±0.20
    EV-YJ/SIR 1×16(Unshielded)
    513/0.20AS
    5.70
    1.16
    1.00
    7.90±0.25
    EV-YJ/SIR 1x25(Unshielded)
    798/0.20AS
    6.70
    0.743
    1.30
    9.60±0.25
    EVYJSIR 1×35(Unshielded)
    1121/0.20AS
    8.00
    0.527
    1.30
    10.60±0.40
    EV-YJSIR 1×50(Unshielded)
    1596/0.20AS
    9.50
    0.368
    1.50
    12.50+0.40
    EV-YJSIR 1x70(Unshielded)
    2257/0.20AS
    11.50
    0.259
    1.50
    14.50±0.40
    EV-YJ/SIR 1x95(Unshielded)
    1887/0.254AS
    13.50
    0.196
    1.60
    16.90±0.50
    EV-YJ/SIR 1x120(Unshielded)
    2368/0.254AS
    15.60
    0.153
    1.60
    19.00±0.50
