125V 20A Copper Electronics Wire Harne Power Cords L5-20P-L5-20R
125V 20A Copper Electronics Wire Harne Power Cords L5-20P-L5-20R
125V 20A Copper Electronics Wire Harne Power Cords L5-20P-L5-20R
125V 20A Copper Electronics Wire Harne Power Cords L5-20P-L5-20R
125V 20A Copper Electronics Wire Harne Power Cords L5-20P-L5-20R
125V 20A Copper Electronics Wire Harne Power Cords L5-20P-L5-20R
125V 20A Copper Electronics Wire Harne Power Cords L5-20P-L5-20R
125V 20A Copper Electronics Wire Harne Power Cords L5-20P-L5-20R
Specifications
Brand Name :
Hexie
Model Number :
NEMA L5-20P to L5-20R Power Cords
Certification :
RoHS SGS UL IATF16949 ISO9001
Place of Origin :
China
MOQ :
300Pcs
Price :
USD0.15-15.75 per Piece
Payment Terms :
T/T, Western Union, MoneyGram,PayPal
Supply Ability :
50000Pcs per Month
Delivery Time :
7-15 work days
Packaging Details :
PE bag with Carton
Product Name :
NEMA Power Cords NEMA L5-20P to L5-20R 125V 20A Twist Locking Extension Cords Generator Extension Cord
Application :
Industrial, Generator Telecommunication etc.
Certificate :
RoHS IATF16949 ISO9001 TUV UL
Standard :
NEMA American Standard
Plug :
NEMA L5-20P
Receptacle :
NEMA L5-20R
Wire Gauge :
12AWG*3C SJT/SJTW
Conductor Material :
99.999% Pure Copper
Insulator Material :
PVC
Cable Length :
3m 5m 10m or custom cable length
Rated Current :
20A AC
Rated Voltage :
125V AC
Color :
Black Orange
MOQ :
300Pcs
Description

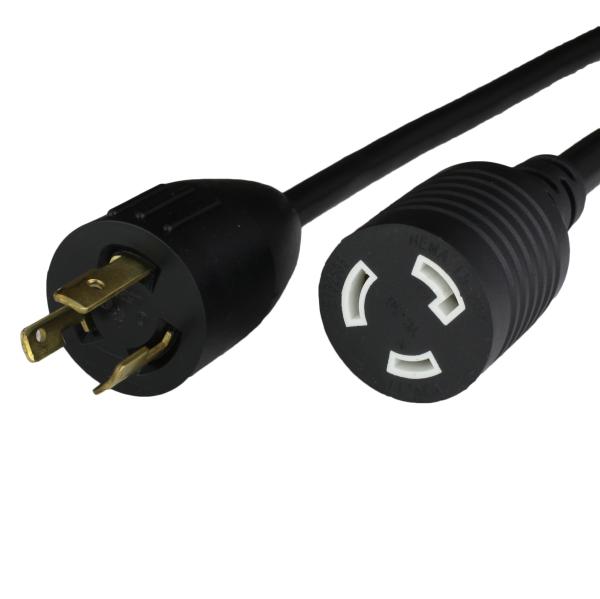

NEMA L5-20P to L5-20R Extension Cord, Locking 3-Prong, 20 AMP, 125 Volts, 2500 Watts (25FT)

NEMA Power Cords NEMA L5-20P to L5-20R 125V 20A Twist Locking Extension Cords Generator Extension Cord

  • Heavy-duty for RV, 100% copper conductor inside.
  • SJTW SJT 12/3C stranded wire Extension Cord with Outdoor Jacket, support max 300 Volts and 20 amp overload.
  • Molded with electroplate copper terminal in order to avoid surface oxidation effectively.
  • Generator 3-prongs Twist Lock L5-20 Locking Connector, 120 Voltages. NEMA L5-20P to L5-20R, Max Rate 2500 Watt (20A,125V)
  • Universal to all other Brands 3-ping L5 type 20A locking connector, Chose 25 foot, 36 foot, 50 foot for your need.

L5-20 extension cord

Connect NEMA L5-20 Locking 3 conductors L5-20R 20A outlet to plug.
Three choices of length.


We focus on producing power cord and molding NEMA plug or connector.
Most of generally use NEMA plugs and receptacles we can manufacture with PVC cable.
We have approved for all PVC wire in 62 standard, and also have approved for most of connectors in 817 standard.

Specifications

Attribute Specification
Current (Amps) 20 Amps
Voltage (Volts) 125 volts
Receptacle (Female) NEMA L5-20R
Plug (Male) NEMA L5-20P
Cordage/Gauge 12AWG-3C SJT/SJTW
Conductor Material 99.999% Pure Copper
Certifications RoHS ISO9001 IATF16949
Color Black or Yellow
Technology character

NEMA L5-20P

General Information:

The NEMA L5-20P is a 3 Wire grounded plug with a hot, neutral , and ground pin rated up to 125V and 20A. This plug can be locked into place on the matching receptacle which prevents nuisance disconnection. This plug looks nearly identical to L5-30P but is slightly smaller in pin thickness and alignment circumference. Refer to either plug, receptacle or face plate to find out your amp requirements.

What does the NEMA L5-20P Connect to?

The NEMA L5-20P connects to both the NEMA L5-20 Connector which is commonly found on power drops and extension cords, and the Outlet which is commonly found in industrial settings.

NEMA L5-20R Twist-Lock

General Information:

The NEMA L5-20R Twist-Lock Connector is rated up to 125VAC and 20A. This couples with the L5-20P and locks into place, eliminating nuisance disconnection. This makes this connector common in commercial and industrial settings where there is high traffic. This connector is found on our L5-20 Extension Cord Series, which is used to extend power from an existing L5-20R wall receptacle or connector to a certain location for convenience.

What does the NEMA L5-20R Connect to?

The NEMA L5-20R Locking Connector is designed to be twisted into a locking position with the NEMA L5-20P Locking Plug. These are commonly used with smaller devices using a standard 125V Power supply, used in locations with high traffic.
