Copper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 Degree
Copper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 Degree
Copper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 Degree
Copper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 Degree
Copper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 Degree
Copper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 Degree
Copper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 Degree
Copper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 Degree
Specifications
Brand Name :
Hexie
Model Number :
8 AWG Cable
Certification :
UL ROHS
Place of Origin :
Guangdong,China
MOQ :
100
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T,Paypal/Trade Insurance Order
Supply Ability :
500000m per month
Delivery Time :
3-5working days after receive payement
Packaging Details :

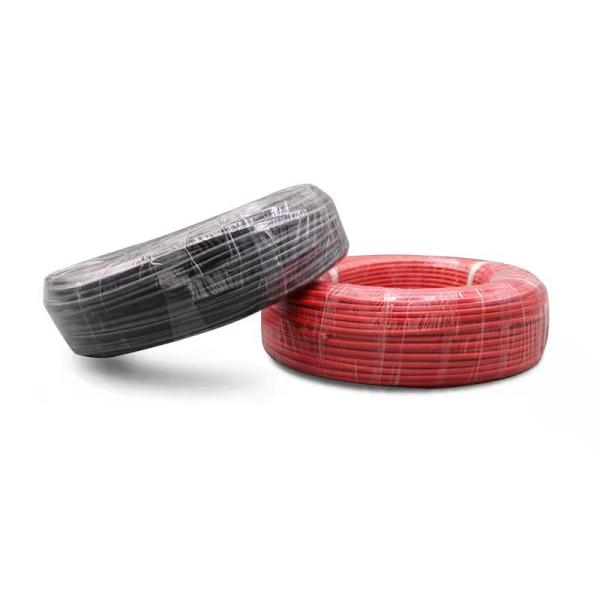

100m per roll ,PE film and hard cartons
product name :
Flexible 8awg Silicone Cable
Conductor Material :
Tinned Copper
Conductor Type :
Stranded
Insulation Material :
Silicone Rubber
Conductor structureructurer :
1650/0.08
Outer Diameter :
6.0MM
color :
different color Available
packing way :
100m per roll
Description

Flexible Silicone Cable 1650/ 0.08 8 AWG Stranded Copper Wire 600V 200℃

Description:

Ultra Flexible, Low Resistance, Strand Wire,High Performance Pure Silicone Wire

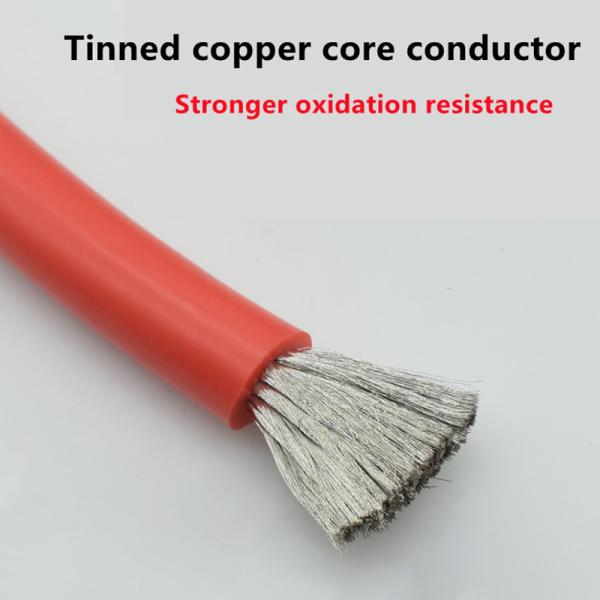

- High-quality tinned copper inner core, can maintained copper wire for a long time does not oxidize .
- Scope: Applicable to all kinds of electrical and electronic, industrial electronics, model aircraft, Cars, ship model, batteries, motors and other links insulation.

Specification:
- Color: Red
- Material: Conductor - tinned copper
- Insulator: Silicone
- Wire number: 8AWG
- Number of shares : 1650
- diameter:
- Sheath outer diameter:

- Conductor resistance: 9.8 ohm one thousand meters
- Rated voltage: 600V
- Testing Voltage:2000V
- Bear Current:60A

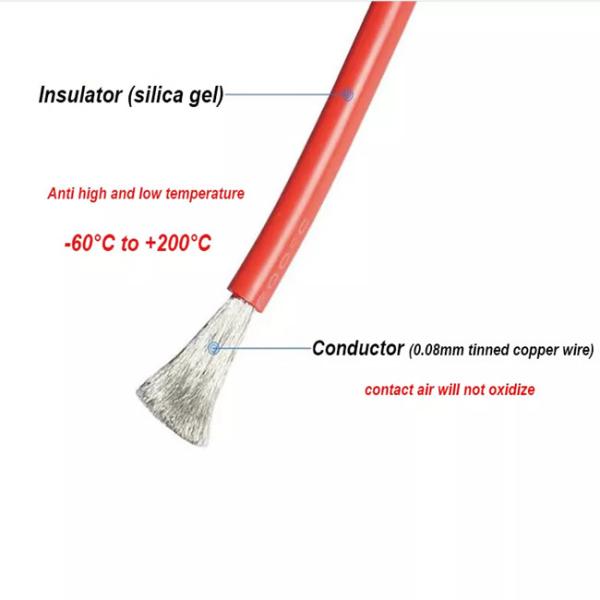

- Temperature range: -60 ~ + 200
- Outer diameter tolerance:

  • Conductor
    Iusulator
    Rical Character

    Sectional area

    Carrying current
    packing
    Spe (AWG)
    Copper wire shares
    (compos.NO./mm)
    Diameter (mm)
    Jacket Thick
    (mm)
    Overall diameter
    (mm)
    Conductor resistance
    (Ohm/km)
    Square millimeter(mm2)
    (ampere)

    (M/coils)
    30AWG
    11/0.08
    0.30
    0.55
    1.20
    331.00
    0.05
    0.80
    200.00
    28AWG
    16/0.08
    0.36
    0.55
    1.30
    227.20
    0.08
    1.25
    200.00
    26AWG
    30/0.08
    0.46
    0.55
    1.50
    123.00
    0.14
    3.50
    200.00
    24AWG
    40/0.08
    0.61
    0.55
    1.60
    97.60
    0.20
    5.00
    200.00
    22AWG
    60/0.08
    0.78
    0.55
    1.70
    88.60
    0.33
    8.73
    200.00
    20AWG
    100/0.08
    0.92
    0.55
    1.80
    62.50
    0.50
    13.87
    200.00
    18AWG
    150/0.08
    1.19
    0.55
    2.30
    39.50
    0.75
    22.00
    200.00
    17AWG
    210/0.08
    1.33
    0.80
    2.70
    21.40
    1.00
    31.00
    200.00
    16AWG
    252/0.08
    1.53
    0.80
    3.00
    24.40
    1.27
    35.00
    100.00
    15AWG
    336/0.08
    1.69
    0.80
    3.10
    20.02
    1.68
    42.00
    100.00
    14AWG
    400/0.08
    1.78
    0.90
    3.50
    15.60
    2.07
    55.60
    100.00
    13AWG
    500/0.08
    2.06
    0.95
    4.00
    12.50
    2.50
    65.00
    100.00
    12AWG
    680/0.08
    2.48
    1.00
    4.50
    9.80
    3.40
    88.40
    100.00
    11AWG
    800/0.08
    2.59
    1.00
    4.60
    7.38
    3.96
    100.00
    100.00
    10AWG
    1050/0.08
    3.06
    1.25
    5.50
    6.30
    5.30
    140.60
    100.00
    8AWG
    1650/0.08
    3.75
    1.50
    6.80
    4.20
    8.29
    200.00
    100.00
    6AWG
    3430/0.08
    5.40
    1.30
    8.00
    1.20
    17.23
    320.00
    50.00
    4AWG
    5000/0.08
    6.50
    1.75
    10.50
    0.84
    25.00
    120.00
    2AWG
    7000/0.08
    8.00
    2.00
    12.00
    0.53
    35.00
    175.00

  • Copper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 Degree

    Copper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 DegreeCopper 8 AWG Flexible Silicone Cable 1650/0.08 600V 200 Degree
