PVC Power Cable, PVC Jacket Cable Sheath Extrusion Line
PVC Power Cable, PVC Jacket Cable Sheath Extrusion Line
PVC Power Cable, PVC Jacket Cable Sheath Extrusion Line
PVC Power Cable, PVC Jacket Cable Sheath Extrusion Line
Specifications
Brand Name :
HNT
Place of Origin :
Wuxi
Certification :
ISO9001:2008, CE, High-tech enterprise
MOQ :
1 set
Price :
negotiable
Packaging Details :
according to customer's requirements
Delivery Time :
30-120 days
Payment Terms :
T/T, L/C
Extrusion material :
PVC, PE, LDZH, LDLH, semi-conducting PVC, semi-conducting PE
Function :
HV cable jacket or sheath extrusion
Line Speed :
80 m/min
conductor shape :
Circular, Sector, Stranded, Solid
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Description

Power Cable Extrusion Line:

Power Cable Jacket Extrusion Line is designed for HV cable jacket or sheath extrusion. Applicable extrusion materials PVC, PE, LDZH, LDLH, semi-conducting PVC, semi-conducting PE and etc.

Technical Parameter:

Model

 Φ200 + Φ120

Screw diameter

 Φ200 mm + Φ120 mm

Extrusion amount

 400 kg/hr

Viable conductor shape

 Circular, Sector, Stranded, Solid

Applicable material

 PVC, PE, LDZH, LDLH, semi-conducting PVC, semi-conducting PE

Control mode

 PLC

Max line speed

 80 m/min

Wire diameter control precision

 ±0.02 mm

Line components;

Main Parts of Line Qty
Portal driven type pay off 2
TQD3200kg Belt caterpillar(before extruder) 1
Bitumen Coating machine 1

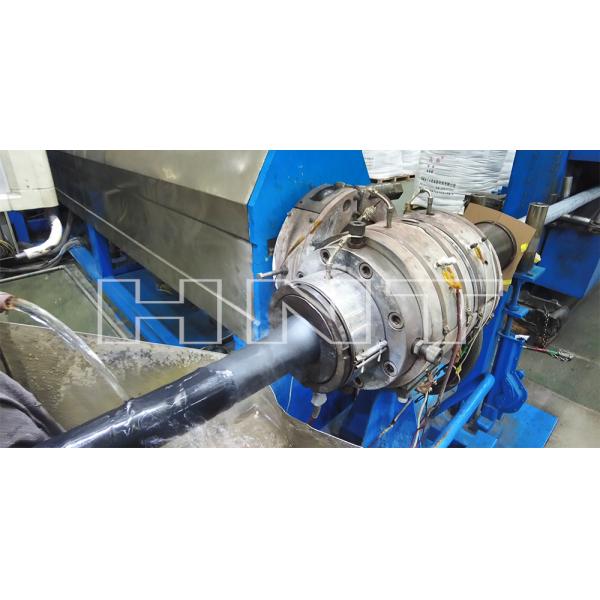

Main extruder 1
Φ180mm cross head 1
Given material loading system & dryer (500kg/1000kg) 2
24m stainless steel cooling trough (400*350mm) 1
Dryer device 1
TQD3200kg caterpillar (after extruder) 1
Graphite coating machine 1

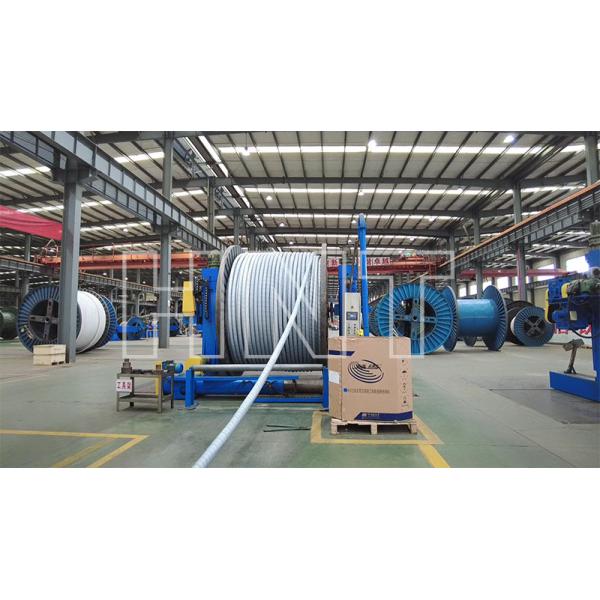

PN2500-5000mm portal type take up 35T 2
Electric control system 1
