Diameter 0.81-6.99 mm Coaxial Cable Stripping Machine Stripping Max 9 Layers Stripping Length 48mm
Diameter 0.81-6.99 mm Coaxial Cable Stripping Machine Stripping Max 9 Layers Stripping Length 48mm
Specifications
Brand Name :
Fortune Sky
Model Number :
4806
Certification :
CCC,CE
Place of Origin :
China
Wire Diameter Range :
0.81-6.99mm
Wire Stripping Length :
48mm
Wire Stripping Layers :
9
Description

Coaxial Cable Stripping Machine

Features:

Mainly used for processing coaxial cable and special single wire, using the most advanced rotating turret, to improve the accuracy and speed.

Use of specific tools and rotary axis positioning device, and can strip up to 9 layers without changing the blade corresponds to the processing of various sizes and sheath wire, and is equipped with freely set controller modular, digital display cutting diameter.

Machine Working Vedio: https://vimeo.com/180396973

Diameter 0.81-6.99 mm Coaxial Cable Stripping Machine Stripping Max 9 Layers Stripping Length 48mm

Diameter 0.81-6.99 mm Coaxial Cable Stripping Machine Stripping Max 9 Layers Stripping Length 48mm

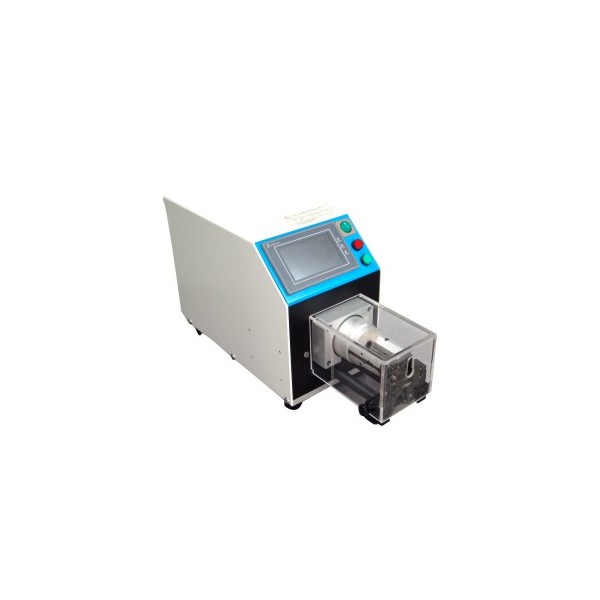

Device Name: 4806 Coaxial Cable Stripping Machine

Technical parameters:

Max cable diameter: 0.81-up to6.99 mm

Cutting Unit Depth: 0.01mm

Stripping Length: 48mm

Stripping layers: 9

Drive mode: motor / ball screw drive (imported from Japan)

Display: Touchscreen

Blade: 2, Material: tungsten steel imports Switzerland

Centering sheet: 2, Material: tungsten steel imports

Clamp means: self-aligning, motor drive, the clamping force control program

Productivity: 500-700pcs / h (depending on the cable type and length dependent)

Open: Manual / Sensor

Power: 220V / 50HZ

Power: 250W

Net Weight: 25KG

Dimensions: 525X186X278 mm

Working environment: 0-50 degrees, moderate dryness, vibration-free work surface, moderate dryness workshop
