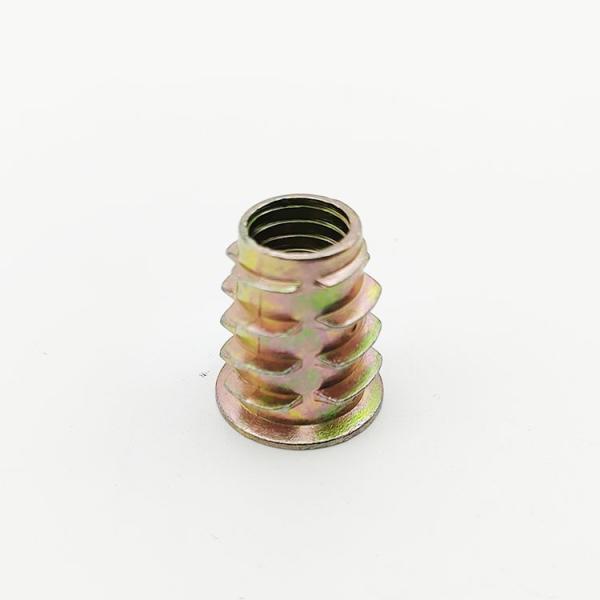

M4 M5 M6 Zinc Alloy Hex Drive Head Screw Threaded Wood Insert Nut For Wood
M4 M5 M6 Zinc Alloy Hex Drive Head Screw Threaded Wood Insert Nut For Wood
M4 M5 M6 Zinc Alloy Hex Drive Head Screw Threaded Wood Insert Nut For Wood
M4 M5 M6 Zinc Alloy Hex Drive Head Screw Threaded Wood Insert Nut For Wood
Specifications
Brand Name :
AVIC-Flight
Model Number :
MM6-M10
Certification :
ISO9001：2015，ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
0.5-1CNY/pcs
Payment Terms :
D/P，T/T
Supply Ability :
20000pcs/day
Delivery Time :
5 work days
Packaging Details :
100pcs/bag
Name :
Wood nut
Coating :
Transparent passivated
Precision :
6H
Feature :
Self Tapping
Usage :
Wood Structure For Furniture
Application :
Heavy Industry, Retail Industry, Automotive Industry
Material :
Carbon steel, Zinc Alloy
Thread :
Metric or Inch
Description

M4 M5 M6 Zinc Alloy Hex Drive Head Screw Threaded Wood Insert Nut For Wood

How to Use


1. Pre-drill, drill a well-sized hole first with tools, the following is drilling specification reference, when the material is high-hardness, please enlarge the hole.
M6x15mm, Suggest that the diameter of the hole is 9 +/- 0.2mm, the length is about 18mm;
M8x25mm, Suggest that the diameter of the hole is 12 +/- 0.2mm, the length is about 28mm;
M10x25mm, Suggest that the diameter of the hole is 15 +/- 0.2mm, the length is about 29mm;
2. Use the proper internal hex tool to screw in. Warm tips: You can use vise or clip to clamp the both sides while inserting the nuts to wooden board, which can effectively reduce cracking.

Specification


Product

Number

 Straight countersunk head

Aperture

mm

Length

mm

Outer

diameter

mm

 Material Surface treatment
M4 M5 M6 Zinc Alloy Hex Drive Head Screw Threaded Wood Insert Nut For Wood TLMYG6*10 countersunk head 6 10 10.5 Iron

Zinc plated, nickel plated
TLM-YG6*12 6 12 10.5
TLM-YG6*13 6 13 10.5
TLM-YG6*15 6 15 10.5
TLM-YG6*17 6 17 10.5
TLM-YG6*18 6 18 10.5
TLM-YG6*20 6 20 10.5
TLM-YG6*25 6 25 10.5
TLM-DG6*20 8 20 10.5
TLM-DG6*25 8 25 10.5
TLM-YG8*13 8 13 12.5
TLM-YG8*15 8 15 12.5
TLM-YG8*17 8 17 12.5
TLM-YG8*18 8 18 12.5
TLM-YG8*20 8 20 12.5
TLM-YG8*22 8 22 12.5
TLM-YG8*25 8 25 12.5
TLMYG10*20 10 20 15.2
TLMYG10*25 10 25 15.2
TLMYG10*30 10 30 15.2

M4 M5 M6 Zinc Alloy Hex Drive Head Screw Threaded Wood Insert Nut For Wood

M4 M5 M6 Zinc Alloy Hex Drive Head Screw Threaded Wood Insert Nut For Wood

M4 M5 M6 Zinc Alloy Hex Drive Head Screw Threaded Wood Insert Nut For Wood

Xinxiang Flight Fastener Co., Ltd. is a professional manufacturer engaged in the design and manufacture of Thread Inserts, Self-Tapping thread inserts and other threaded fasteners. National high-tech enterprises. The company has independent technology development strength, advanced design level, automatic production equipment and high precision detection equipment. Professional to provide customers with Thread Inserts, Self-Tapping thread inserts and other threaded fastener product design and use of the whole process of technical support.
