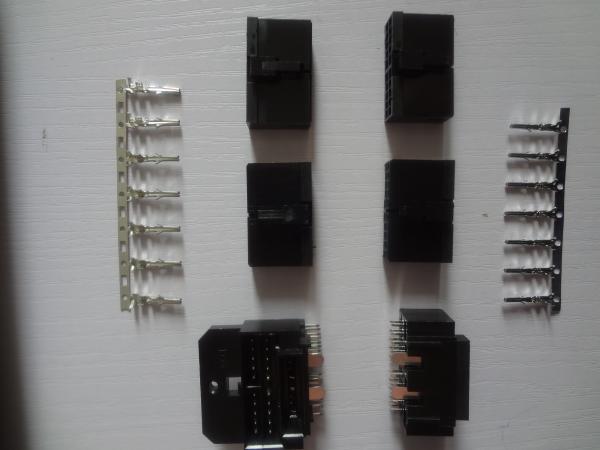

2.6mm Pith 20 Pin Wire to Wire Plastic Automotive Connectors Tin - plated
2.6mm Pith 20 Pin Wire to Wire Plastic Automotive Connectors Tin - plated
Specifications
Brand Name :
JVT
Model Number :
JVT 2368HNO-20
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
material :
Nylon 66
pitch :
2.6mm
Application :
Automotive DVD and GPS
Gender :
Receptacle
Description

2.6mm Pith 20 Pin Wire to Wire Auto Plastic Connector with High Quality

Specifications :

Terminal: Brass , Tin-plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 ,Tin plated

Pitch: 2.6mm

Poles:20

Applicable wire: AWG#18-22

Voltage rating: 250V AC/DC

Current rating: 5A AC/DC

Withstand voltage: 1500V AC/minute

Working temperature: -40°C to +105°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.

2.6mm Pith 20 Pin Wire to Wire Plastic Automotive Connectors Tin - plated

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
