Straight / Right Angle Shrouded Header Connector 2 - 30 Pin Insulation Resistance 100MΩ
Straight / Right Angle Shrouded Header Connector 2 - 30 Pin Insulation Resistance 100MΩ
Specifications
Brand Name :
JVT
Model Number :
JVT3026W-XX-D
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Category :
PCB Board Wafer
Type of Row :
Double Row/ single row
Type :
DIP
Number of Pins :
2-30
Description

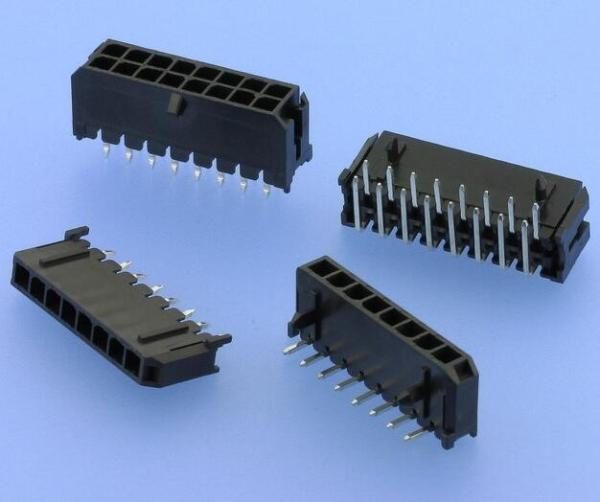

Friction Lock Headers, 3.0mm Pitch, Straight/Right-Angled , 2-30 pin shrouded header connector

Datasheet (PDF) & Other Documents Download center:

1.JVT3026WXX-2XXSNRP-D(SS) Model (1).pdf

Material Specification:

Header : Nylon 66 UL94V-0

PIN: Brass ,Tin plated

Standard Specification:

Pitch

3.0mm

Poles

2-30

Voltage rating

250V AC/DC

Current rating

5A AC/DC

Withstand voltage

500V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

100MΩ Min

Contact resistance

20MΩ Max
