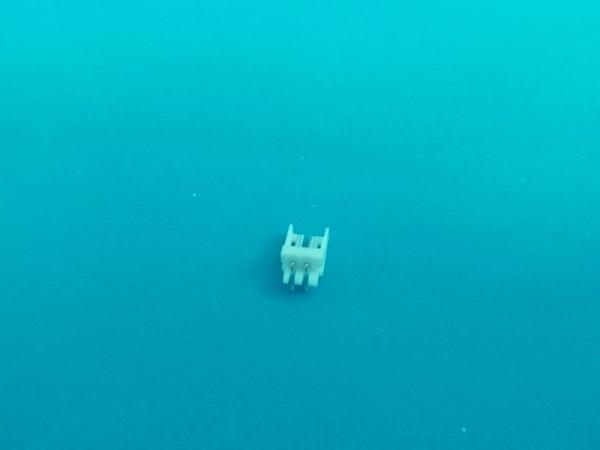

2.0mm Pitch PCB Connectors Wire to Board 2 Pin-15Pin Tin plated / Gold plated
2.0mm Pitch PCB Connectors Wire to Board 2 Pin-15Pin Tin plated / Gold plated
Specifications
Brand Name :
JVT
Model Number :
JVT 2006
Certification :
UL ,RoHS ,REACH
Place of Origin :
China
MOQ :
1000
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
500000pcs per day
Delivery Time :
5-7days
Packaging Details :
Tape&Reel
Pitch :
2.0mm
Poles :
2-15
Color :
White
Material :
Nylon 66 UL94V-0
Description

2.0mm Pitch,PCB Connectors Wire to Board , 2 Pin-15Pin,Tin-plated/Gold-plated

JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive.

All are offered with small moq's ,the majority being stocked items.

Specification​:

Temperature range -25°C - +85°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Poles
2-15
Voltage Rating 250V AC/DC
Current Rating 2A AC/DC
Withstanding voltage 800V AC/minute
Payment details:
Payment item:T/T
MOQ:1000pcs

If we cooperate, you can have

We were your factory in China
Your client satisfied on the right schedule and quality
Your client continued orders
You can get good reputation from your market and obtain more orders
Our professional service before and after sale
Long-term support for the drawings and various materials samples
You are very welcome to contact us

Main Export Markets:

• Asia

• Australia

• Central/South America

• Mid East/Africa/North America
