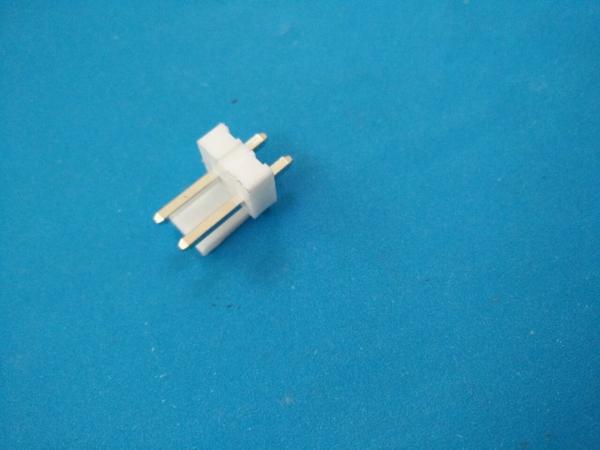

JST VH, 3.96mm Pitch, 2 Way, 1 Row Shrouded, Top Entry PCB Header, Through Hole, Solder Termination

Datasheet (PDF) & Other Documents Download center:

1.JVT1120WN0-XXSNX-D.pdf

Product Details:

JST VH series Locking PCB Headers

The VH Series of Locking Headers from JVT are available in top-entry and side-entry types and feature natural (white) colour UL 94V-0 rated mouldings and tin plated posts. For typical mating VH series housings and contacts see JVT1121HNO-XX and JVT1121TP-SNS respectively.

3.96mm Wire-to-Board Connectors, JST VH Series

The VH Series of 3.96mm pitch wire-to-board connectors from JST are capable of carrying large currents in a compact connector size. Design features include box contacts, polarized housings and secure locking mechanisms.

Drawing:

More Products:

Application:

Our products are widely used in a variety of markets and applications, including:

• Telecom and datacom systems and equipment
• Computers, peripherals, systems
• Industrial controls and robotics
• Instrumentation
• Medical
• Test and Measurement
• Automotive
• Avionic and Military

JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .
