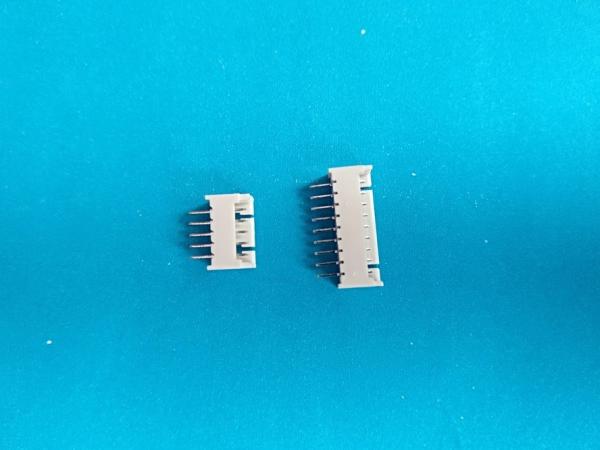

1.25mm Pitch , 2-16 Pin , Wire to Board Connector , Right angle / Vertical , Dip Type Tin-plated
1.25mm Pitch , 2-16 Pin , Wire to Board Connector , Right angle / Vertical , Dip Type Tin-plated
1.25mm Pitch , 2-16 Pin , Wire to Board Connector , Right angle / Vertical , Dip Type Tin-plated
1.25mm Pitch , 2-16 Pin , Wire to Board Connector , Right angle / Vertical , Dip Type Tin-plated
Specifications
Brand Name :
JVT
Model Number :
JVT 1147
Certification :
UL ,RoHS ,REACH
Place of Origin :
China
MOQ :
1000
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000pcs per day
Delivery Time :
5-8 working days
Packaging Details :
Tape&Reel
Part No. :
JVT1147WPT-XXSN-D
Poles :
2-16
Pitch :
1.25mm
Material :
PBT UL94V-0
Tape :
DIP
Finish :
Tin-plated
Voltage rating :
125V AC,DC
Current Rating :
1A AC,DC
Description

1.25mm Pitch , 2-16 Pin , Wire to Board Connector , Right angle / Vertical , Dip Type Tin-plated

JVT offer a complete range of board to board and wire to board connectors including :pin,mini jumpers, female header,PCB Multipole and housing a wide range of applications including:industrial,Medical and automotive.

All are offered with small moq's,the majority being stocked items.

Specification ​:

Category Wire to Board connector
Material PBT UL94V-0
Pitch 1.25mm
Poles 2-16
Type Dip
Voltage rating 125V AC/DC
Current rating 1A AC/DC
Withstand voltage 250V AC/minute
Working temperature -25°C to +85°C
Contact resistance 20MΩ Max
Insulation resistance 100MΩ Min
Samples free
package 1000pcs/bag

Payment Details :

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Service:

♦ prefessional and patient pre-service & after-service

♦ professsional sales team & engineering team & techinology team

♦ puntual delivery time and complete packaging process

♦ preferable price and best quality

Equipment :

1.25mm Pitch , 2-16 Pin , Wire to Board Connector , Right angle / Vertical , Dip Type Tin-plated

1.25mm Pitch , 2-16 Pin , Wire to Board Connector , Right angle / Vertical , Dip Type Tin-plated

1.25mm Pitch , 2-16 Pin , Wire to Board Connector , Right angle / Vertical , Dip Type Tin-plated

1.25mm Pitch , 2-16 Pin , Wire to Board Connector , Right angle / Vertical , Dip Type Tin-plated
