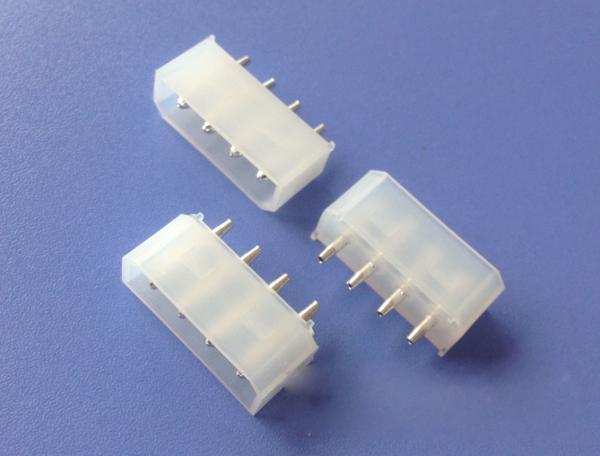

5.08mm Big 4P Power Cable Connectors for Signal 7A AC / DC , SGS / UL / ROHS
5.08mm Big 4P Power Cable Connectors for Signal 7A AC / DC , SGS / UL / ROHS
Specifications
Brand Name :
JVT
Model Number :
JVT1114-S
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
type :
Big 4p
pitch :
5.08mm
rating current :
7A AC / DC
contact material :
brass
Description

SGS / UL / ROHS 5.08mm Big 4P Power Cable Connectors for Signal 7A AC / DC

5.08mm Big 4P for Power Cable Connectors Application Signal 7A AC / DC

Technical Datasheets

5.08mm Big 4P Power Cable Connectors for Signal 7A AC / DC , SGS / UL / ROHS

5.08mm Big 4P Power Cable Connectors for Signal 7A AC / DC , SGS / UL / ROHS

5.08mm Big 4P Power Cable Connectors for Signal 7A AC / DC , SGS / UL / ROHS

5.08mm Big 4P Power Cable Connectors for Signal 7A AC / DC , SGS / UL / ROHS

5.08mm Big 4P Power Cable Connectors for Signal 7A AC / DC , SGS / UL / ROHS

Specification Standardized:

Scale

5.08mm

Cables

4

Applicable wire

AWG#22-28

Rating Voltage

250V AC/DC

Rating Current

7A AC/DC

Voltage Withstand

1500V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

10MΩ Max.

Material Specification :

Terminal:

Brass or Phosphor bronze,Tin/Gold Plated

Housing:

PA66,UL94V-2

Wafer:

Brass ,Nylon 66 UL94V-2

PIN:

Brass ,Tin plated

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
