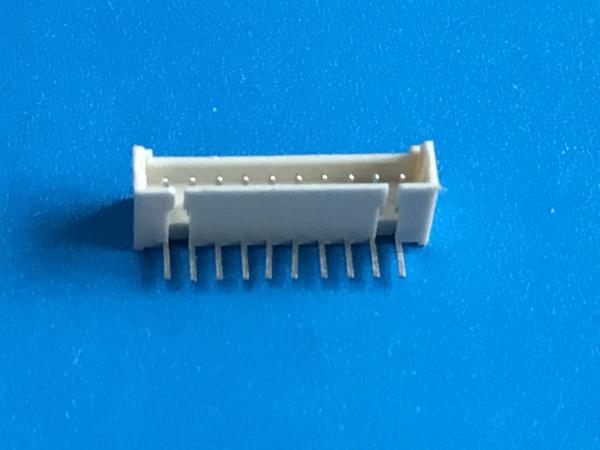

Phosphor Bronze / Brass Terminal PCB Mounted Connectors Dip Type 10 Contacts
Phosphor Bronze / Brass Terminal PCB Mounted Connectors Dip Type 10 Contacts
Specifications
Brand Name :
JVT
Model Number :
JVT1147W46-XXSNR-D
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Category :
PCB Board Wafer
Application :
PCB Board Connector
Type :
Dip
Number of PIns :
10
Description

Phosphor Bronze / Brass Terminal PCB shrouded header Connector Dip Type 10 Contacts,1.25mm pitch

Datasheet (PDF) & Other Documents Download center:

1.PCB SMT header connector.pdf

2.2016 JVT catalogue.pdf

Material Specification:

Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated

Standard Specification:

Pitch

1.25mm

Contacts

2-16

Applicable wire

AWG#18-22

Voltage rating

250V AC/DC

Current rating

5A AC/DC

Withstand voltage

1500V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

800MΩ Min

Contact resistance

20MΩ Max

Our advantage

Favorable unit price

Strict quality control

Shortest lead time

Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)
Accelerated equipments:10 automated injection molding
20 automated pin - setting
6 high precision stamping machines

JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
