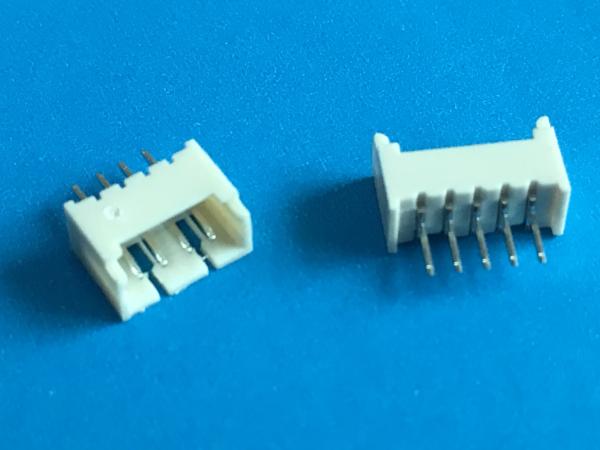

Wafer PCB Shrouded Header Connectors 4 Pin Right Angle Male Socket Connector
Wafer PCB Shrouded Header Connectors 4 Pin Right Angle Male Socket Connector
Specifications
Brand Name :
JVT
Model Number :
JVT1147WNO-05SN-D
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Category :
PCB Board Wafer
Application :
PCB Board Connector
Type :
DIP
Number of PIns :
5
Description

Nylon 66 UL94V-0 Wafer PCB shrouded header Connector ,4pin right angle male socket connector

Material Specification:

Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated

Drawing:

Wafer PCB Shrouded Header Connectors 4 Pin Right Angle Male Socket Connector

Standard Specification:

Pitch

1.0mm

Contacts

5

Applicable wire

AWG#18-22

Voltage rating

125V AC/DC

Current rating

1A AC/DC

Withstand voltage

250V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

100MΩ Min

Contact resistance

20MΩ Max

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
