Original Folded Beam Board to Wire Connectors with Phosphor Bronze Tin plated Terminal
Original Folded Beam Board to Wire Connectors with Phosphor Bronze Tin plated Terminal
Specifications
Brand Name :
JVT
Model Number :
JVT2001
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
pitch :
2.5mm
Series :
XH connector
Category :
Wire to Board Crimp style Connectors
PC board mounting direction :
Top entry, Side entry
Description

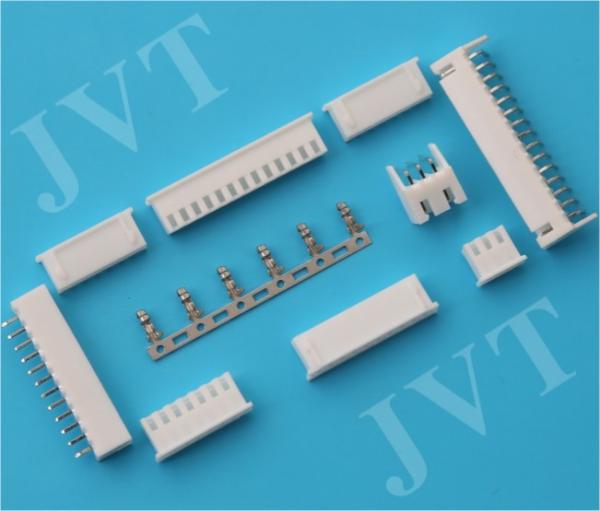

Original Folded Beam Board to Wire Connectors with Phosphor Bronze Tin plated Terminal

2.5mm pitch Wire to Board Crimp style Connectors,3pin housing connector ,equivalent of JST XHP-3

  • Original folded beam contact
  • Box-shaped shrouded header
  • Header with a boss
  • Conforming to the HA terminal

Original Folded Beam Board to Wire Connectors with Phosphor Bronze Tin plated Terminal

Original Folded Beam Board to Wire Connectors with Phosphor Bronze Tin plated Terminal

Original Folded Beam Board to Wire Connectors with Phosphor Bronze Tin plated Terminal

Standardized Specification:

Pitch

2.5mm

No.of contact

2-16

Applicable wire

AWG#22-28

Rating Voltage

250V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

10MΩ Max.

Specification on Material:

Terminal:

Phosphor Bronze ,Tin plated

Housing:

PA66,UL94V-0

Wafer:

Nylon 66 UL94V-0

PIN:

Brass ,Tin plated

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
