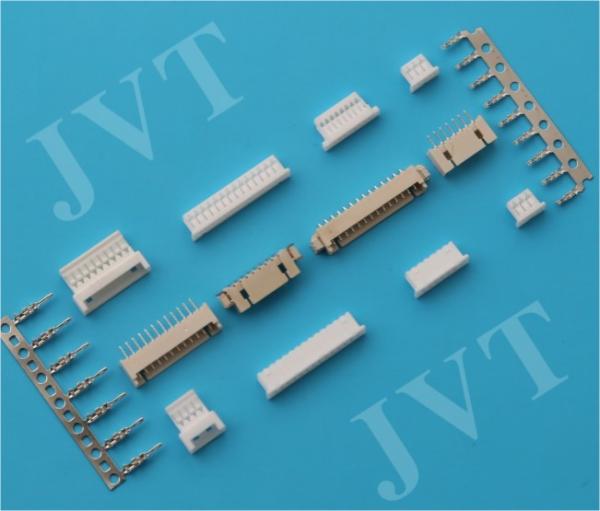

1.25mm Pitch Wire To PCB Board Male / Female Connector Wafer Housing 2 - 15 Poles
1.25mm Pitch Wire To PCB Board Male / Female Connector Wafer Housing 2 - 15 Poles
Specifications
Brand Name :
JVT
Model Number :
JVT1146
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Application :
Signal, Wire-to-Board, Wire-to-Wire
equivalent :
molex51021 series
Pitch - Mating Interface :
1.25mm
poles :
2 - 15
Category :
Crimp Housings
Flammability :
94V-0
Description

1.25mm Pitch Wire To PCB Board Male/ Female connector Wafer Housing

1.25mm Pitch Wire-to-Wire and Wire-to-Board Housing, Female, 2 Circuits, cross molex 51021-0200

JVT1146 series is offered in wire-to-board and wire-to-wire options. The system saves about 45% of PCB space compared to typical 2.00mm wire-to-board systems. It is a single row system, available in 2 to 15 circuits, with both surface mount and through-hole headers.

A full range of automatic, semi-automatic and manual tooling is available to support crimp harness assembly using discrete wires.

Specification Standardized:

Insulator Material: LCP, PBT, PA46, PA6T, PA9T

Insulator Flammability: UL94V-0

Terminal Material: Phosphor bronze or brass

Operating temperature: -25 + 85°C

Climatic category (IEC): 55/125/21

Operating Humity range: Annual mean 75%

Insulator color: black, gray, white

Tail style: straight DIP type, SMT type- straight, SMT type- horizontal

Pitch 1.25mm 2.00mm 2.50mm 2.54mm 3.96mm 4.20mm
Current Rating 1 Ampere 2 Ampere 3 Ampere 3 Ampere 7 Ampere 5-9 Ampere
Contact Resistance(Max) 20m ohm 20m ohm 20m ohm 20m ohm 20m ohm 20m ohm
Withstand Voltage for one minute 500 V AC 500 V AC 500 V AC 500 V AC 500 V AC 500 V AC
Insulator Resistance(Min) 100 M ohm 100 M ohm 100 M ohm 100 M ohm 100 M ohm 100 M ohm

Application

Our products are widely used in a variety of markets and applications, including:

  • Telecom and datacom systems and equipment
  • Computers, peripherals, systems
  • Industrial controls and robotics
  • Instrumentation
  • Medical
  • Test and Measurement
  • Automotive
  • Avionic and Military

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
