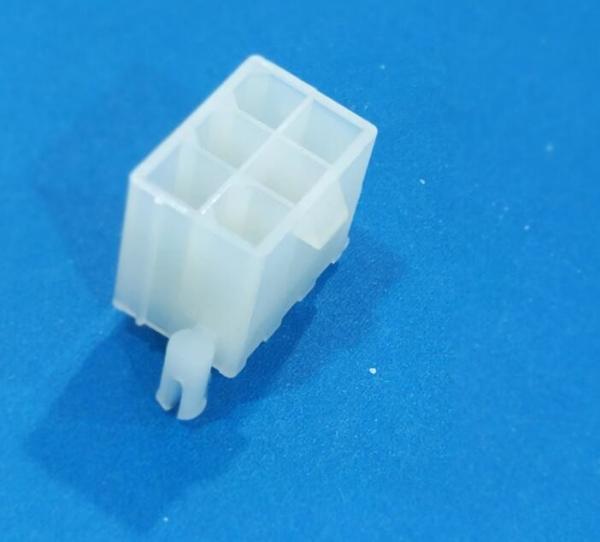

6 pin 4.2mm Pitch JVT PCB Header Connectors Vertical Type Dual Row UL94V-2
6 pin 4.2mm Pitch JVT PCB Header Connectors Vertical Type Dual Row UL94V-2
6 pin 4.2mm Pitch JVT PCB Header Connectors Vertical Type Dual Row UL94V-2
6 pin 4.2mm Pitch JVT PCB Header Connectors Vertical Type Dual Row UL94V-2
Specifications
Brand Name :
JVT
Model Number :
JVT 1151W
Certification :
UL ,RoHS ,REACH
Place of Origin :
China
MOQ :
2000
Price :
negotiation0
Payment Terms :
T/T, Western Union
Supply Ability :
500000pcs per day
Delivery Time :
5-7days
Packaging Details :
Tape&Reel
Pitch :
4.2mm
Poles :
2-16
Color :
White
Material :
Nylon 66 UL 94V-2
Voltage rating :
250V AC,DC
Current rating :
3A,AC,DC
Contact resistance :
30mΩmax
Temperature range :
-25°C-+85°C
Description

PCB HEADER CONNECTORS ,6PIN ,4.2mm PITCH VERTICAL TYPE ,DUAL ROW ,UL94V-2

Specification :

Temperature range -25°C - +85°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Poles
2-16
Voltage Rating 250V AC/DC
Current Rating 3A AC/DC
Withstanding voltage 1000V AC/minute

6 pin 4.2mm Pitch JVT PCB Header Connectors Vertical Type Dual Row UL94V-2

Transaction detials :
Payment item:T/T
MOQ:2000pcs

Service :

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality

JVT competitive advantages :
  • JVT self-owned brand
  • Superiority of price
  • Shortest lead time
  • Innovative service
  • Excellent quality

Main Export Markets:

• Asia

• Australia

• Central/South America

• Mid East/Africa/North America
