Copper Alloy Tin Plated Mini Jumper Connector Pitch 2.54mm Open Type For PCB
Copper Alloy Tin Plated Mini Jumper Connector Pitch 2.54mm Open Type For PCB
Specifications
Brand Name :
JVT
Model Number :
JVT2541HPT-02BL
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Pitch :
2.54mm
type :
open or close
contact plating :
tin plated
Color :
kinds of
Type :
Jumper
Application :
Printed Circuit Board
Height (mm) :
6.0mm
Description

Product name:

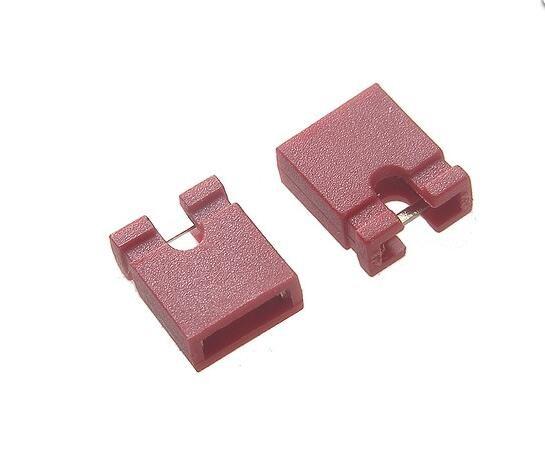

Mini jumper pitch 2.54mm, open, gold flash, height 6mm RED colour

2.54mm Mini Jumper Connector ,2poles ,blue ,PBT material ,10K/bag ​

mini micro jumper for 2.54 mm pin header

Datasheet (PDF) & Other Documents Download center:

JVT2541HPT-02BK-B.pdf

2016 JVT catalogue.pdf

PCB SMT header connector.pdf

Specification Standardized:

Pitch: 2.54 mm
Contact: copper alloy
Housing: thermoplastic (UL 94V-0)
Contact resistance: 30m Ohms

  • Mini Jumper spec:
  • Contact material: phosphor bronze or brass
  • Standard: PBT + 30%GF
  • Contact plating: Au or Sn over 50μNi
  • Plastic height: 3.0, 3.5, 4.0, 4.5, 5.5, 6.0, 6.5, 8.5, 11.2 or 13.5mm
  • Current rating: 1.0, 1.5 or 3.0A
  • Minimum contact resistance: 20 or 30mΩ
  • Minimum insulation resistance: 500 or 1,000MΩ
  • Withstanding voltage: 100, 500 or 1,000V AC
  • Insulator material: polyester (UL94V-0)
  • Operation temperatures: -40 to +105°C
  • 2.54mm mini jumper,any color


Copper Alloy Tin Plated Mini Jumper Connector Pitch 2.54mm Open Type For PCB

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
