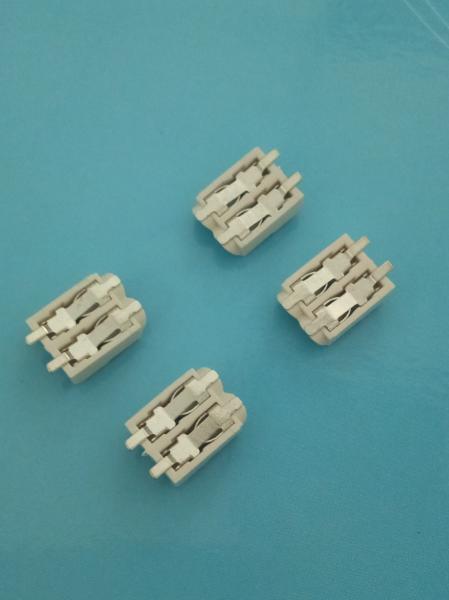

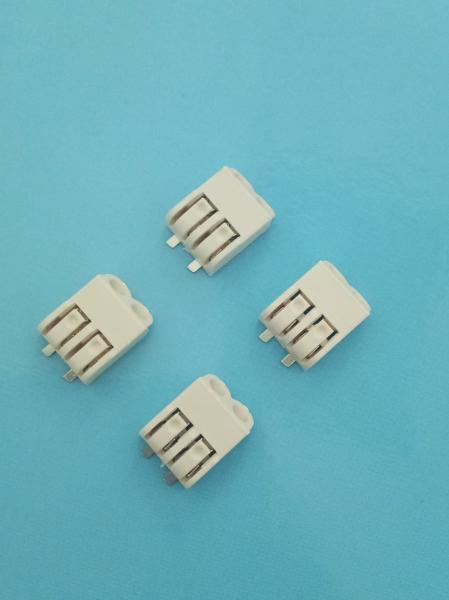

4 mm Pitch LED Connector 2 Pin SMD Style Tin - Plated For LED Light Application
4 mm Pitch LED Connector 2 Pin SMD Style Tin - Plated For LED Light Application
4 mm Pitch LED Connector 2 Pin SMD Style Tin - Plated For LED Light Application
4 mm Pitch LED Connector 2 Pin SMD Style Tin - Plated For LED Light Application
Specifications
Brand Name :
JVT
Model Number :
JVT4002W46-02SN-S
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T in advance
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
Reel Packing+outer carton
Pitch :
4.0mm
No.of pins :
2
type :
SMD Led connector ,terminal block
Packing :
Reel Packing
Description

4mm Pitch LED Connector 2 pin in SMD Style Tin-Plated for LED Light Application

Specification Standardized:

Pitch

4.0mm

Pins

2

Pin Material

 Phospher copper Gold Flash/Tin-plated

Rating Voltage

500V AC/DC

Rating Current

9A AC/DC

Withstand voltage

2000V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

500MΩ Min

Contact resistance

20MΩ Max.

Technical Datasheet:

4 mm Pitch LED Connector 2 Pin SMD Style Tin - Plated For LED Light Application

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Competitive Advantages:

We are connectors manufacturer with over 15 years experience.


1. Complete Product range.


2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.


3. Close to Shenzhen Port.


4. Punctual & Short lead time.


5. Good quality & Competitive Price.
