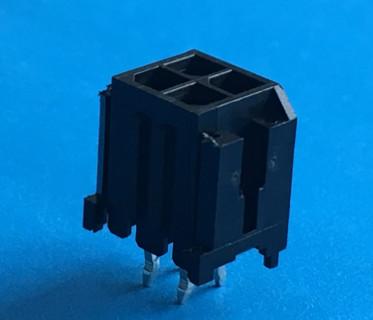

Equivalent Of Molex 3.0mm Micro - Fit DIP Wafer Connector Automotive Wire Connectors
Equivalent Of Molex 3.0mm Micro - Fit DIP Wafer Connector Automotive Wire Connectors
Specifications
Brand Name :
JVT
Model Number :
JVT3026WNO-2*4(SN/GA)K-D
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Category :
Wire to Board Crimp style Connectors
Cross part :
Molex 3.0mm Micro-Fit
Type :
DIP Vertical Type
Pitch :
3.0mm
Color :
Black
Poles :
2*1-2*12
Description

Equivalent of Molex 3.0mm Micro-Fit, Vertical Type, DIP Wafer Connector, Automotive Connector

Cross Part number list.pdf

2016 JVT catalogue.pdf

Technical Datasheet:

Equivalent Of Molex 3.0mm Micro - Fit DIP Wafer Connector Automotive Wire Connectors

Standardized Specification:

Pitch

3.0mm

No.of contact

2*1-2*12

Equivalent

 Molex Micro-Fit

Rating Voltage

250V AC/DC

Rating Current

5A AC/DC

Voltage Withstand

1500V AC/minute

Operating temperature

-25°C to +105°C

Insulation resistance

1000MΩ Min

Contact resistance

10MΩ Max.

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Competitive Advantages:

We are connectors manufacturer with over 15 years experience.


1. Complete Product range.


2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.


3. Close to Shenzhen Port.


4. Punctual & Short lead time.


5. Good quality & Competitive Price.

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • America
  • Europe
