3.96mm Pitch Right Angle Automotive Connectors 5A AC/DC Molex P/N 09-65-2038
3.96mm Pitch Right Angle Automotive Connectors 5A AC/DC Molex P/N 09-65-2038
Specifications
Brand Name :
JVT
Model Number :
JVT5001HNO-XX
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
equivalent :
molex
pitch :
3.96mm
Application :
Power, Wire-to-Board, Wire-to-Wire
Gender :
Receptacle
Connector Style :
Receptacle
PCB Mounting Orientation :
Right Angle
Description

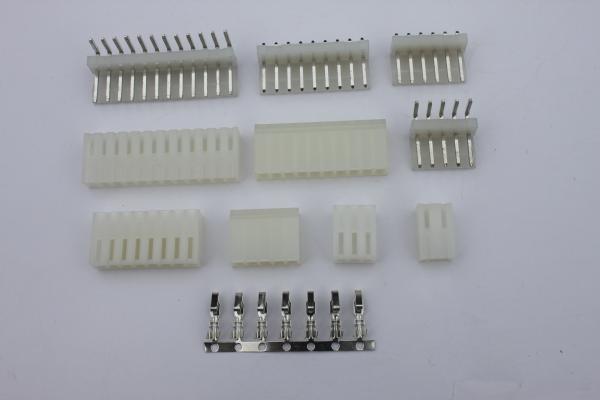

3.96mm Pitch Right Angle Automotive Connectors 5A AC/DC Molex P/N 09-65-2038

Cross by molex P/N 09-65-2038 3.96mm right angle header connector ,Automotive connector , PA66 UL 94V-2

Datasheet (PDF) download :

1.JVT5001HXX-XX.pdf

2.JVT5001TX-XXX.pdf

3.JVT4001WN2-XXSN-D.pdf

Specifications :

Part Number: JVT5001HNO-10

Category: wire to board connector ,power connector ,wire to wire connector

Terminal: Brass , Tin-plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 ,Tin plated

Pitch:3.96mm

Poles:2-16

Applicable wire: AWG#18-22

Voltage rating: 250V AC/DC

Current rating: 5A AC/DC

Withstand voltage: 1500V AC/minute

Working temperature: -40°C to +105°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
