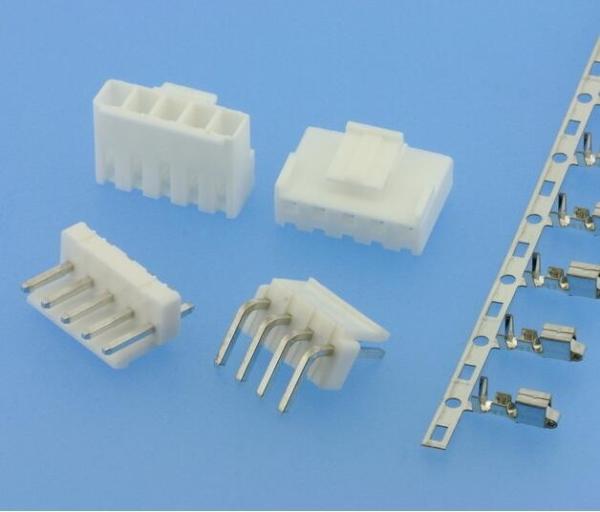

Friction Lock Headers / Crimp Housings 3.96mm Pitch Automotive Electrical Connectors
Friction Lock Headers / Crimp Housings 3.96mm Pitch Automotive Electrical Connectors
Specifications
Brand Name :
JVT
Model Number :
JVT1120WNO-XXSN-D
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Category :
PCB Board Wafer
Type of Row :
single row
Type :
through hole
Number of Pins :
2-16
Description

Friction Lock Headers / Crimp Housings, 3.96mm Pitch, Straight/Right-Angled ,pitch available in 2-16 pins

Material Specification:

Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated

Datasheet (PDF) & Other Documents Download center:

1.JVT1120WN2-XXSNR-D.pdf

2.JVT1120WN0-XXSNX-D.pdf

Standard Specification:

Insulator Thermoplastic, rated UL94 V-0
Contact Material Square pin 1.14mm, copper alloy
Applicable wire AWG 22 ~ 18
Contact Resistance < 20mΩ
Insulation Resistance > 1000MΩ
Test Voltage 1000VAC
Voltage Rating 250VAC
Current Rating 5A
Temperature Range -25°C ... +85°C
Processing Wave soldering

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
