Female Shrouded Header Automotive Electrical Connectors 100MΩ Insulation Resistance
Female Shrouded Header Automotive Electrical Connectors 100MΩ Insulation Resistance
Specifications
Brand Name :
JVT
Model Number :
JVT2502WNO-XXSNR-D
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
Category :
PCB Board Wafer
Type of Row :
Double Row
Type :
DIP
Number of Pins :
5
Description

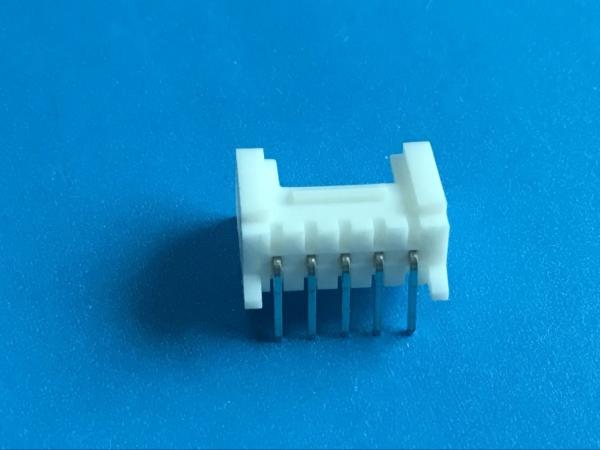

DIP Female PCB shrouded header Electrical Connector for Automotive 100MΩ Min Insulation Resistance,right angle socket connector

Material Specification:

Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated

Datasheet (PDF) & Other Documents Download center:

1.JVT2032WPT-XXSNPK-D Model (1).pdf

JVT 2.0mm Pitch Wafer for PCB Board Connector With Right Angle​

Standard Specification:

Pitch

2.5mm

Pol4es

4-40

Applicable wire

AWG#18-22

Voltage rating

250V AC/DC

Current rating

5A AC/DC

Withstand voltage

500V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

100MΩ Min

Contact resistance

20MΩ Max

Female Shrouded Header Automotive Electrical Connectors 100MΩ Insulation Resistance

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
