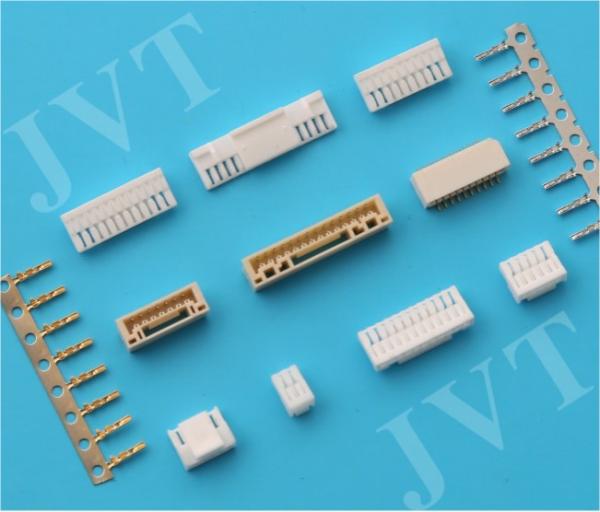

JST SM02B-GHS-TB 2 Pin Right Angle Header Crimp Style Connect for LCD / TV Panel
JST SM02B-GHS-TB 2 Pin Right Angle Header Crimp Style Connect for LCD / TV Panel
Specifications
Brand Name :
JVT
Model Number :
JVT1257
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
pitch :
1.25mm
Current rating :
1.0A (AWG#26)
rating voltage :
150V
PC board mounting direction :
Top entry, Side entry
Description

1.JST SM02B-GHS-TB 2 Pin Right Angle Header Crimp Style Connect for LCD / TV Panel

2.cross part of JST SM02B-GHS-TB ,2pin right angle header ,Wire to Board Crimp style Connectors

Datasheet (PDF) & Other Documents Download center:

1.JVT1257HN0-XXL(QY) Model (1).pdf

2.JVT1257TP-SNXL(HM).pdf

3.JVT1257W9T-XXSNL-S(XFE).pdf

Developed for to PDP, LCD or small electronics equipments.
This low insertion force type connector realizes easier mating operation.

  • Secure locking structure
  • Contact lock structure
  • Preventionof contact deformation
  • Clear engagement click sounds

Specification Standardized:

Pitch

1.25mm

Poles

2-15

AWG

AWG#28 - 32

Voltage Rating

150V AC/DC

Rating Current

1A AC/DC

Withstanding Voltage

500V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

500MΩ Min

Contact resistance

20MΩ Max.

Material Specification :

Terminal: Phosphor Bronze ,Tin plated

Housing: PA66,UL94V-0

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
