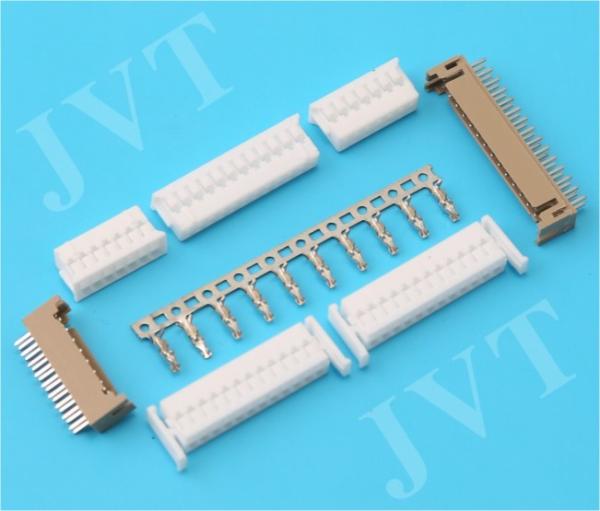

PHD Wire to Board PCB Connector 2.0mm Scale 2-16 Cables -25°C - +85°C Operating Temperature
PHD Wire to Board PCB Connector 2.0mm Scale 2-16 Cables -25°C - +85°C Operating Temperature
Specifications
Brand Name :
JVT
Model Number :
JVT2007
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
applicable wire :
22 - 28 3AWG
pitch :
2.0mm
poles :
2 -16
type :
PHD
Description

PHD Wire to Board Connector 2.0mm Scale 2-16 Cables -25°C - +85°C Operating Temperature

Material Specification :

Terminal: Phosphor Bronze ,Tin plated

Housing: PBT UL 94V-0

PHD 2.0mm Pitch for Wire to Board Connector Application Signal 3A AC / DC

Drawings:

PHD Wire to Board PCB Connector 2.0mm Scale 2-16 Cables -25°C - +85°C Operating Temperature

PHD Wire to Board PCB Connector 2.0mm Scale 2-16 Cables -25°C - +85°C Operating Temperature

PHD Wire to Board PCB Connector 2.0mm Scale 2-16 Cables -25°C - +85°C Operating Temperature

PHD Wire to Board PCB Connector 2.0mm Scale 2-16 Cables -25°C - +85°C Operating Temperature

Standardized Specification:

Scale

2.0mm

Cables

2-16

Applicable wire

AWG#24-28

Rating Voltage

125V AC/DC

Rating Current

2A AC/DC

Withstand voltage

500V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
