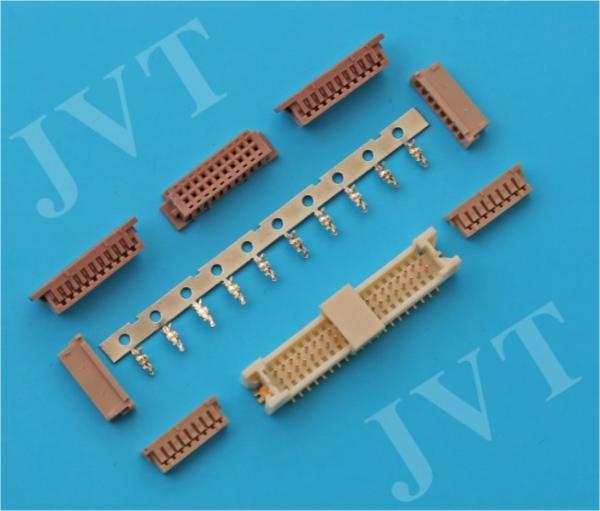

DF13 1.25mm Pitch Pcb Connectors Wire To Board With Double Row 2 - 30 Poles
DF13 1.25mm Pitch Pcb Connectors Wire To Board With Double Row 2 - 30 Poles
Specifications
Brand Name :
JVT
Model Number :
JVT1255
Certification :
ISO9001/SGS/UL/ROHS/Reach
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiation
Payment Terms :
T/T or Western Union
Supply Ability :
300000 per month
Delivery Time :
7-10 working days
Packaging Details :
PE bag packing +outer carton
type of row :
double row
pitch :
1.25mm
wire applicable :
28 - 32 #
current :
1A AC / DC
Description

DF13 1.25mm pitch for pcb connector Wire to Board with Double Row,2-30poles

Specification Standardized:

Scale

1.25mm

Cables

2 X 5 - 2 X 20

Applicable wire

AWG#28 - 32

Rating Voltage

150V AC/DC

Rating Current

1A AC/DC

Voltage Withstand

500V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

500MΩ Min

Contact resistance

20MΩ Max.

Datasheet:

DF13 1.25mm Pitch Pcb Connectors Wire To Board With Double Row 2 - 30 Poles

DF13 1.25mm Pitch Pcb Connectors Wire To Board With Double Row 2 - 30 Poles

DF13 1.25mm Pitch Pcb Connectors Wire To Board With Double Row 2 - 30 Poles

DF13 1.25mm Pitch Pcb Connectors Wire To Board With Double Row 2 - 30 Poles

Material Specification :

Terminal: Phosphor Bronze ,Tin plated

Housing: PA66,UL94V-0

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
