PA 2.0mm Pitch PCB Connectors Wire to Board Dip Type Tin-plated
PA 2.0mm Pitch PCB Connectors Wire to Board Dip Type Tin-plated
PA 2.0mm Pitch PCB Connectors Wire to Board Dip Type Tin-plated
PA 2.0mm Pitch PCB Connectors Wire to Board Dip Type Tin-plated
PA 2.0mm Pitch PCB Connectors Wire to Board Dip Type Tin-plated
PA 2.0mm Pitch PCB Connectors Wire to Board Dip Type Tin-plated
Specifications
Brand Name :
JVT
Model Number :
JVT 2032
Certification :
UL ,RoHS ,REACH
Place of Origin :
China
MOQ :
1000
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000pcs per day
Delivery Time :
5-8 days
Packaging Details :
Tape&Reel
Pitch :
2.0mm
Poles :
2-16
Color :
White
Material :
Nylon 66 UL94V-0
Current Rating :
3A,AC,DC
Voltage Rating :
250V AC,DC
Description

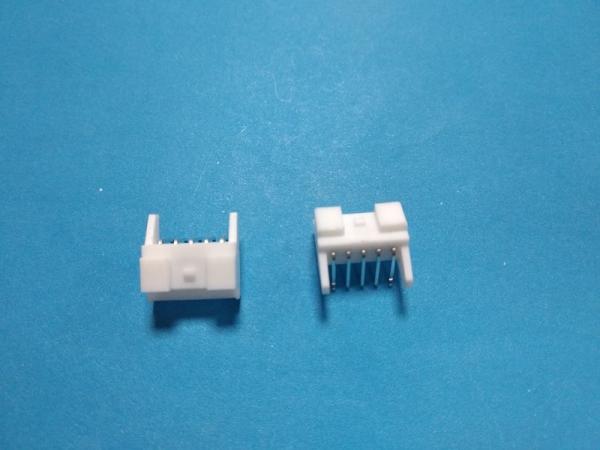

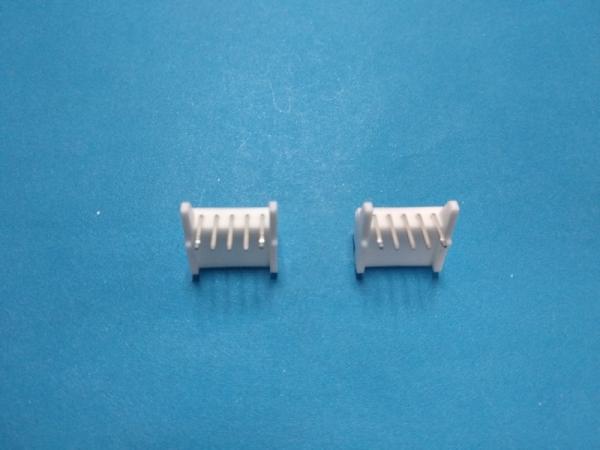

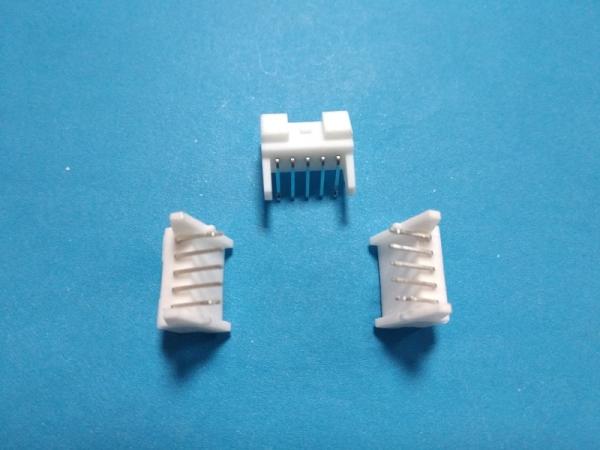

PA 2.0mm Pitch , PCB Connectors Wire to Board, 2 Pin - 16Pin,Dip Type Tin-plated

JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .

Specification​:

Temperature range -25°C - +85°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Poles
2-16
Voltage Rating 250V AC/DC
Current Rating 3A AC/DC
Withstanding voltage 800V AC/minute
Payment details :
Payment item:T/T
MOQ:1000pcs
Sample:Free

Service :

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality

Machine :

PA 2.0mm Pitch PCB Connectors Wire to Board Dip Type Tin-plated
