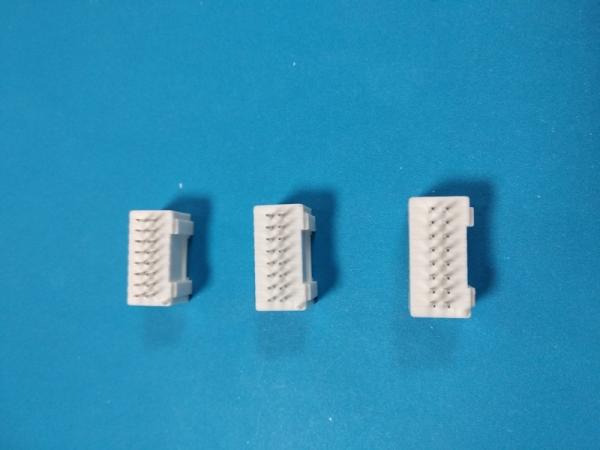

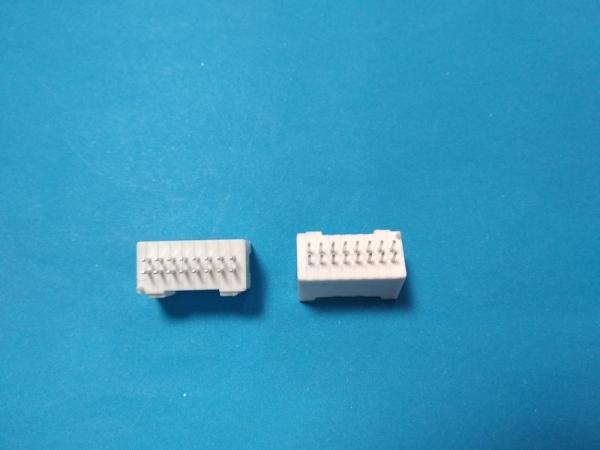

Printed Circuit Board Connectors Wire To Board Double Row 4 - 32Pin
Printed Circuit Board Connectors Wire To Board Double Row 4 - 32Pin
Printed Circuit Board Connectors Wire To Board Double Row 4 - 32Pin
Printed Circuit Board Connectors Wire To Board Double Row 4 - 32Pin
Printed Circuit Board Connectors Wire To Board Double Row 4 - 32Pin
Printed Circuit Board Connectors Wire To Board Double Row 4 - 32Pin
Specifications
Brand Name :
JVT
Model Number :
JVT 2038
Certification :
UL ,RoHS ,REACH
Place of Origin :
China
MOQ :
2000
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
500000pcs per day
Delivery Time :
5-7days
Packaging Details :
Tape&Reel
Pitch :
4.2mm
Poles :
1-12
Material :
Nylon 46 UL94V-0
Finish :
Tin-plated
Color :
White
Insulation resistance :
1000MΩmin
Description

PAD2.0 mm , PCB Connectors Wire To Board, Double Row ,4-32Pin, Dip Type Tin-plated

JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive.

All are offered with small moq's ,the majority being stocked items.

Drawing:

Printed Circuit Board Connectors Wire To Board Double Row 4 - 32Pin

Specification​:

Temperature range -25°C - +85°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Poles 1-12
Voltage Rating 250V AC/DC
Current Rating 7A AC/DC
Withstanding voltage 1500V AC/minute

Transaction details :

Payment item:T/T
MOQ:1000PCS
Sample:Free

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
