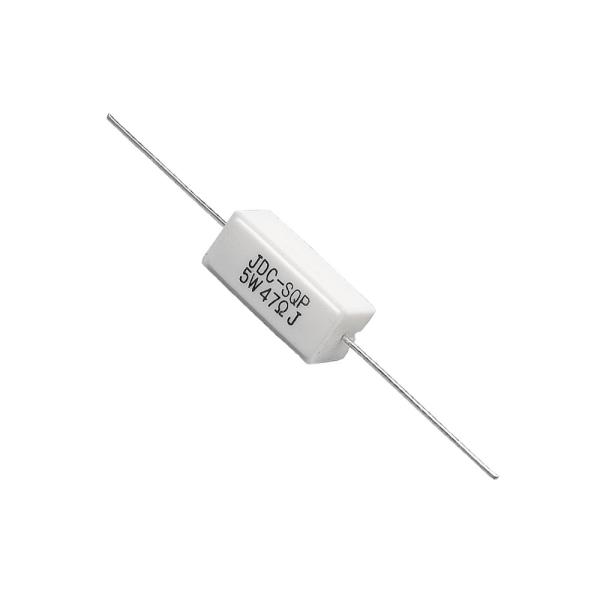

Ceramic Encased Wirewound Resistor RADIAL LEADS

Features:

  • Small dimension, excellent stability in high temperature, resistant to humidity and shock.
  • Completely insulated character suitable for printed circuit board.
  • Precision resistance values with longer life.
  • In high resistance values,the winding cores will be replaced by power film cores.
  • Super heat dissipation;small linear temperature coefficient.
  • Instant overload capability; low noise figures and low annual shift on resistance values.

Dimensions:

0.1R-30KR Ceramic Wirewound Resistors , Encased Radial Lead Resistor

Type Dimension (mm) Resistance Range (Ω)
SQP W±1 H±1 L±1.5 d±0.05 Wirewound Mo
2W 7 7 18 0.5~0.6 0.01~50 50-20K
3W 8 8 22 0.7~0.8 0.01~50 50~33K
5W 10 9 22 0.7~0.8 0.01~100 100~50K
7W 10 9 35 0.7~0.8 0.01~1K 1K~50K
10W 10 9 48 0.7~0.8 0.01~1K 1K~150K
15W 12.5 11.5 48 0.7~0.8 0.01~1K 1K~150K
20W-25W 14 13.5 60 0.7~0.8 0.01~1K 1K~150K

Descriptions:

With the extended resistance range and high-temperature rating, the resistors can be specified for operation in harsh environments. SQP Cement Wirewound resistors feature a resistance range from 0.01Ω to 1KΩ, while SQP Cement Film Resistor have a resistance range of 50Ω to 150KΩ.

SQP Cement resistor's feature ideal specifications for high volume and high-temperature applications. Frequently used in power supplies, motor controllers, and automotive applications, these products can be custom tailored to individual needs.

Standard tolerances for both devices are to ±5%, with TCRs ≤300ppm. JDC is equipped to design and produce custom components to meet many design and reliability demands.

Electrical Performance:

TEST ITEMS CONDITION SPEC.
Resistance Temp Coeff. -30°C~ 200°C ±300ppm / °C
Short Time Over Load 2.5 times of rated wattage for 5 sec. ±2 %
Rated Load Rated wattage for 30 min. ±1 %
Voltage Withstanding 800 v AC 1 min. no charge
Temp. Cycle -30°C~ 85°Cfor 5 cycles ±1 %
Load Life 70°Con-off cycle 1000hrs. ±5 %
Moisture-proof Load Life 40°C95% RH on-off cycle 500 hrs. ±5 %
Incombustibility 16 times of rated wattage for 5 min. not flammed
