Tubular Vitreous Enamelled Wirewound Resistors
Tubular Vitreous Enamelled Wirewound Resistors
Tubular Vitreous Enamelled Wirewound Resistors
Tubular Vitreous Enamelled Wirewound Resistors
Specifications
Brand Name :
JDC
Model Number :
RX20
Place of Origin :
CHINA
MOQ :
100
Price :
US$3-$50 per pcs
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
100Kpcs per Month
Delivery Time :
7-10 working days
Packaging Details :
Bulk in Carton
Description

Tubular vitreous enamel wirewound resistor is a cylindrical ceramic tube at both ends clips to fixed terminals. Ceramic tube winding copper nickel or nickel-chromium alloy resistance wire. Surface coated with glazed porcelain, after high temperature treatment, the resistor dried and insulation fixed, then fitted with fixed foot frame.

Features:

  1. Rated power: 8W-500W

  2. Small size, high power.

  3. Glaze coating, simple structure, easy to install.

  4. Fixed resistance and adjustable resistance optional.

Applications:

  1. Electric tools, Consumer product applications.

  2. Power supply, high voltage applications.

  3. Welding machine, switch applications.

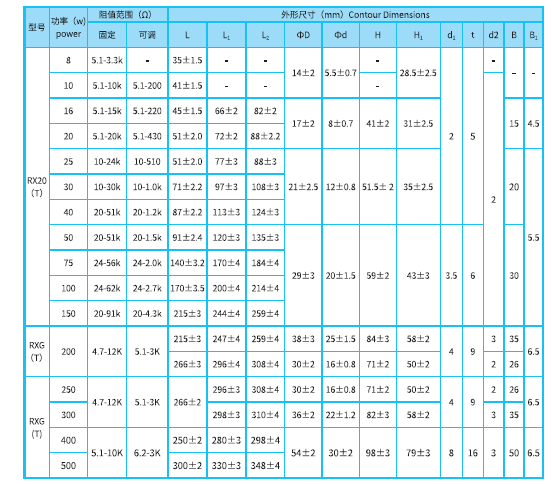

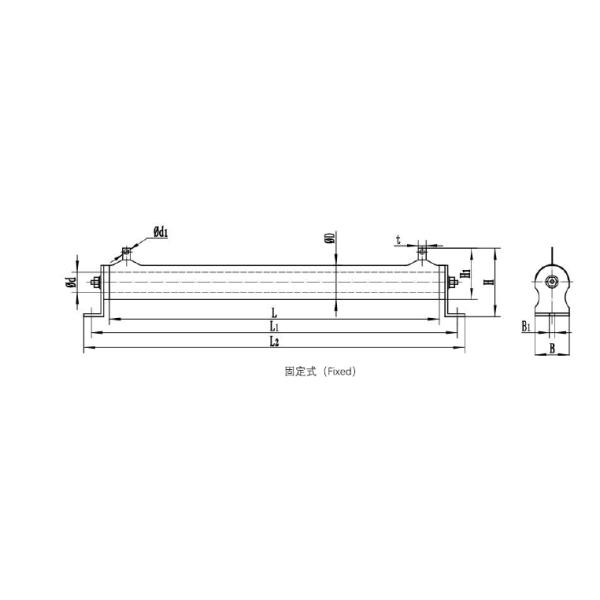

Dimensions:

Tubular Vitreous Enamelled Wirewound Resistors

Tubular Vitreous Enamelled Wirewound Resistors
