Trapezoidal Aluminum Housed Resistor
Trapezoidal Aluminum Housed Resistor
Trapezoidal Aluminum Housed Resistor
Trapezoidal Aluminum Housed Resistor
Trapezoidal Aluminum Housed Resistor
Trapezoidal Aluminum Housed Resistor
Trapezoidal Aluminum Housed Resistor
Trapezoidal Aluminum Housed Resistor
Specifications
Brand Name :
JDC
Model Number :
AS-T
Certification :
RoHs
Place of Origin :
CHINA
MOQ :
50
Price :
US$2-$15 per pcs
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
100Kpcs per Month
Delivery Time :
7-10 working days
Packaging Details :
Bulk in Carton
Rated Power :
50W-5000W
Resistance :
0.1Ω - 100KΩ
Tolerance :
±1%, ±2%, ±5%
TCR :
± 20-150 ppm/°C
Technology :
Aluminum Housed
Description

Trapezoidal Aluminum Housed Resistor, high power, braking, lead wire, 50W-500W

AS-T Series has different terminal designs for flexible connection, the highest rated power is up to 10KW by customizing design, it is ideal for loading and braking application.

Features:

  1. Aluminum house, good heat dissipation.
  2. High Insulation alibility
  3. Widely used in inverter, elevator and UPS system.

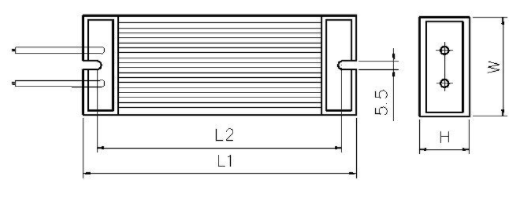

Dimensions:

Trapezoidal Aluminum Housed Resistor

Type Rated power
(w)		 Resistance range
(Ω)		 Tolerance Dimension (mm) High Temperature Cable Remark
L1±1.5 L2±1 W±1 H±1
AS-T 60 0.1～10K ±1%(F)
±2%(G)
±5%(J)		 115 98 40 20

1.5~2.5mm²

150~300mm
AS-T 80 0.1～10K 140 123
AS-T 100 0.1～10K 165 148
AS-T 120 0.1～10K 190 173
AS-T 150 0.1～10K 215 198
AS-T 200 0.1～10K 165 147 60 30
AS-T 300 1～10K 215 197
AS-T 400 1～10K 265 247
AS-T 500 1～10K 335 317
AS-T 800 1～10K 400 382 60 60
AS-T 1000 1～10K 400 384 50 107
AS-T 1200 1～10K 450 434
AS-T 1500 1～10K 485 469
AS-T 2000 1～10K 550 534

Electrical Performance:

Inspection item Function requirement Test method
Insulation resistance >1GMΩ 500VDC,1min
Withstand voltage No breakdown and arc flying 3000VAC,5s
Over load No visible damage, △R≤±(1％R+0.05Ω) 10 Times,5s
Terminal tensile strength No visible damage, △R≤±(1％R+0.05Ω) 20N,10s
Temperature Change No visible damage, △R≤±(2％R+0.05Ω) -55℃~+200℃, 3 cycles
Vibration No visible damage, △R≤±(2％R+0.05Ω) 10Hz~500Hz,50m/s²,30min
Damp heat steady state No visible damage, △R≤±(5％R+0.1Ω) 40±2℃,RH(90~95)%,96h
Endurance No visible damage, △R≤±(10％R+0.1Ω) 25℃,Ur,1000h
