Commercial Power Chassis Mount Resistors , Wirewound Aluminum Housed Resistors
Commercial Power Chassis Mount Resistors , Wirewound Aluminum Housed Resistors
Commercial Power Chassis Mount Resistors , Wirewound Aluminum Housed Resistors
Commercial Power Chassis Mount Resistors , Wirewound Aluminum Housed Resistors
Specifications
Brand Name :
JDC
Model Number :
RH
Certification :
ROHS & Reach
Place of Origin :
China
MOQ :
100
Price :
US$3-$12 per pcs
Payment Terms :
TT, L/C, Paypal, Western Union,
Supply Ability :
1,000 Kpcs per month
Delivery Time :
7-10 days
Packaging Details :
Bulk in Cartons
Rated power range :
75W-500W
Resistance :
0.1R-100kR
Tolerance :
±1%, ±2%, ±5%,
Operating Temperature :
-55°C~275°C
TCR :
± 20-150 ppm/°C
Description

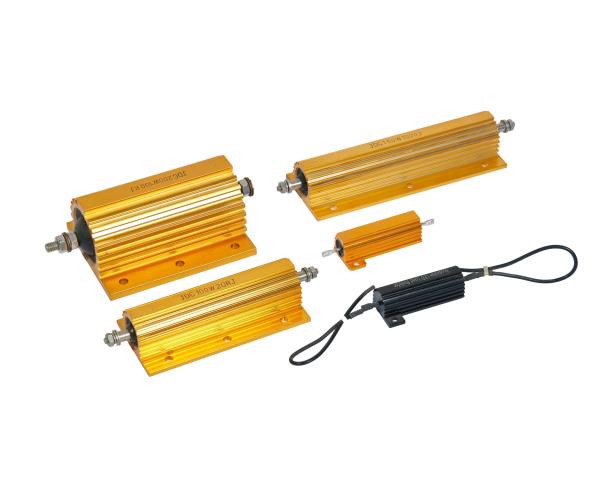

Chassis Mount Wirewound Resistors, Commercial Power,Aluminum Housed, Heatsink

It has excellent heat dissipating capability by using heat sink design on aluminum case, Wirewound resistors or Film resistors will be filled in aluminium case with molded or sand instuction.

Dimensions:

Commercial Power Chassis Mount Resistors , Wirewound Aluminum Housed Resistors

Commercial Power Chassis Mount Resistors , Wirewound Aluminum Housed Resistors

Commercial Power Chassis Mount Resistors , Wirewound Aluminum Housed Resistors

Commercial Power Chassis Mount Resistors , Wirewound Aluminum Housed Resistors

Features:

  1. Rated Power: 5W, 10W, 25W, 50W, 75W, 100W, 150W, 200W, 300W, 500W
  2. Wide range of values from 0.05 Ω to 82 kΩ
  3. Temperature coefficient of resistance: ± 10-300 ppm/°C
  4. Resistance tolerance:± 1%,± 2%,± 5%
  5. Operating Temperature Range: -55°C to +275°C
  6. Non-inductive is available
