Metal Clad Braking High Power Resistor Ultra Thin Slim Profile
Metal Clad Braking High Power Resistor Ultra Thin Slim Profile
Metal Clad Braking High Power Resistor Ultra Thin Slim Profile
Metal Clad Braking High Power Resistor Ultra Thin Slim Profile
Specifications
Brand Name :
JDC
Model Number :
AS-C
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
US$2-$5 per pcs
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
100Kpcs per Month
Delivery Time :
7-10 working days
Packaging Details :
Bulk in Carton
Rated Power :
50W-200W
Resistance :
0.1Ω - 10KΩ
Tolerance :
±1%, ±2%, ±5%
TCR :
± 20-300 ppm/°C
Technology :
Aluminum Housed
Description

Slim Profile High Power Metal Clad Braking Resistors, ultra thin, 50W-200W

By insert MICA wirewound resistors in 7MM thickness heatsink aluminum case, the sizes of power resistors will be much smaller than traditional ceramic core wirewound resistors.

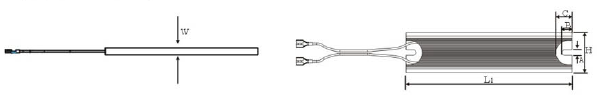

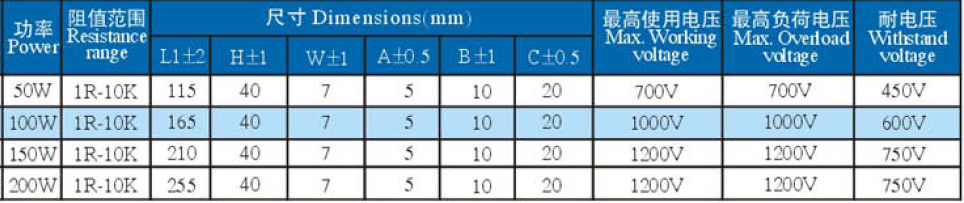

Dimensions:

Metal Clad Braking High Power Resistor Ultra Thin Slim Profile

Metal Clad Braking High Power Resistor Ultra Thin Slim Profile

Electrical Performance:

Inspection item Function requirement Test method
Insulation resistance >50MΩ 500VDC,1min
Withstand voltage No breakdown and arc flying 1000VAC,5s
Over load No visible damage, △R≤±(1％R+0.05Ω) 10 Times,5s
Terminal tensile strength No visible damage, △R≤±(1％R+0.05Ω) 20N,10s
Temperature Change No visible damage, △R≤±(2％R+0.05Ω) -55℃~+200℃, 3 cycles
Vibration No visible damage, △R≤±(2％R+0.05Ω) 10Hz~500Hz,50m/s²,30min
Damp heat steady state No visible damage, △R≤±(5％R+0.1Ω) 40±2℃,RH(90~95)%,96h
Endurance No visible damage, △R≤±(10％R+0.1Ω) 25℃,Ur,1000h
