1KΩ Aluminum Housed Wirewound Resistors , 50W Low Profile Resistors
1KΩ Aluminum Housed Wirewound Resistors , 50W Low Profile Resistors
1KΩ Aluminum Housed Wirewound Resistors , 50W Low Profile Resistors
1KΩ Aluminum Housed Wirewound Resistors , 50W Low Profile Resistors
Specifications
Brand Name :
JDC
Model Number :
RXHB
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
US$2-$3.5 per pcs
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
100Kpcs per Month
Delivery Time :
7-10 working days
Packaging Details :
Bulk in Carton
Rated Power :
50W
Resistance :
0.1Ω - 1KΩ
Tolerance :
±1%, ±2%, ±5%
TCR :
± 20-300 ppm/°C
Technology :
Aluminum Housed
Description

50W Low profile aluminum shell resistor, ultra-thin, high power, wirewound

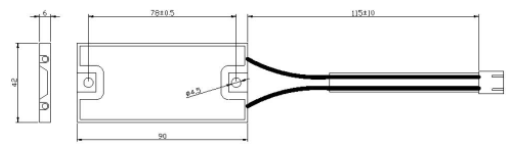

Dimensions:

1KΩ Aluminum Housed Wirewound Resistors , 50W Low Profile Resistors

Type Rated power
(w)		 Resistance range
(Ω)		 Tolerance Dimension (mm) Cable Spec Remark
L1±1.5 L2±1 W±1 H±1
RXHB 50 50 1(F)
2(G)
5(J)
10(K)		 90 78 42 6 1.5~2.5mm²
115~300mm		 Welcome to customize

Electrical Performance:

Inspection item Function requirement Test method
Insulation resistance >100MΩ 500VDC,1min
Withstand voltage No breakdown and arc flying 1500VAC,5s
Over load No visible damage, △R≤±(1％R+0.05Ω) 10 Times,5s
Terminal tensile strength No visible damage, △R≤±(1％R+0.05Ω) 20N,10s
Temperature Change No visible damage, △R≤±(2％R+0.05Ω) -55℃~+200℃, 3 cycles
Vibration No visible damage, △R≤±(2％R+0.05Ω) 10Hz~500Hz,50m/s²,30min
Damp heat steady state No visible damage, △R≤±(5％R+0.1Ω) 40±2℃,RH(90~95)%,96h
Endurance No visible damage, △R≤±(10％R+0.1Ω) 25℃,Ur,1000h
