Ship Shaped Aluminum Housed Wirewound Resistors non flammable
Ship Shaped Aluminum Housed Wirewound Resistors non flammable
Specifications
Brand Name :
JDC
Model Number :
AS-S
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
US$2-$5 per pcs
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
100Kpcs per Month
Delivery Time :
7-10 working days
Packaging Details :
Bulk in Carton
Rated Power :
50W-220W
Resistance :
0.1Ω - 10KΩ
Tolerance :
±1%, ±2%, ±5%
TCR :
± 20-300 ppm/°C
Technology :
Aluminum Housed
Description

Ship-Shaped Aluminum Housed Resistor, non-flammable, vibration-proof, 50W-220W

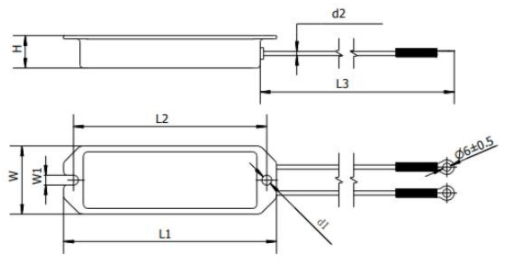

Dimensions:

Ship Shaped Aluminum Housed Wirewound Resistors non flammable

Type Rated power
(w)		 Resistancerange
(Ω)
Tolerance		 Dimension (mm) Max. working Voltag(V) Max. overload Voltage(V)
L1±1.5 L2±1 L3±1 W±1 W1±1 H±1 d1±1 d2±1
AS-S 50 0.1～10K ±1%(F)
±2%(G)
±5%(J)		 100 90 150 30 4.5 14 4.5 2.5 300 300
60 0.1～10K 100 90 150 30 4.5 14 4.5 2.5 300 300
80 0.1～10K 130 118 150 42 6 20 6 3.5 400 400
100 0.1～10K 130 118 150 42 6 20 6 3.5 400 400
120 0.1～10K 182 172 150 42 6 20 6 3.5 500 500
150 0.1～10K 182 172 150 42 6 20 6 3.5 500 500
220 0.1～10K 230 220 150 6 4.5 20 4.5 3.5 600 600

Electrical Performance:

Inspection item Function requirement Test method
Insulation resistance >100MΩ 500VDC,1min
Withstand voltage No breakdown and arc flying 1500VAC,5s
Over load No visible damage, △R≤±(1％R+0.05Ω) 10 Times,5s
Terminal tensile strength No visible damage, △R≤±(1％R+0.05Ω) 20N,10s
Temperature Change No visible damage, △R≤±(2％R+0.05Ω) -55℃~+200℃, 3 cycles
Vibration No visible damage, △R≤±(2％R+0.05Ω) 10Hz~500Hz,50m/s²,30min
Damp heat steady state No visible damage, △R≤±(5％R+0.1Ω) 40±2℃,RH(90~95)%,96h
Endurance No visible damage, △R≤±(10％R+0.1Ω) 25℃,Ur,1000h
