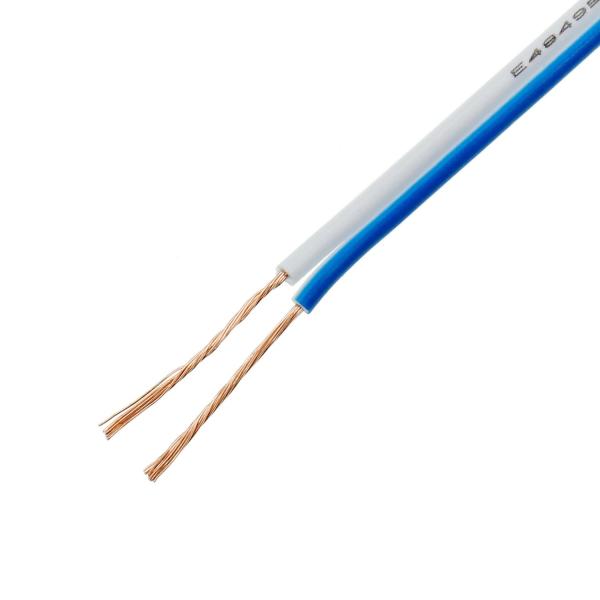

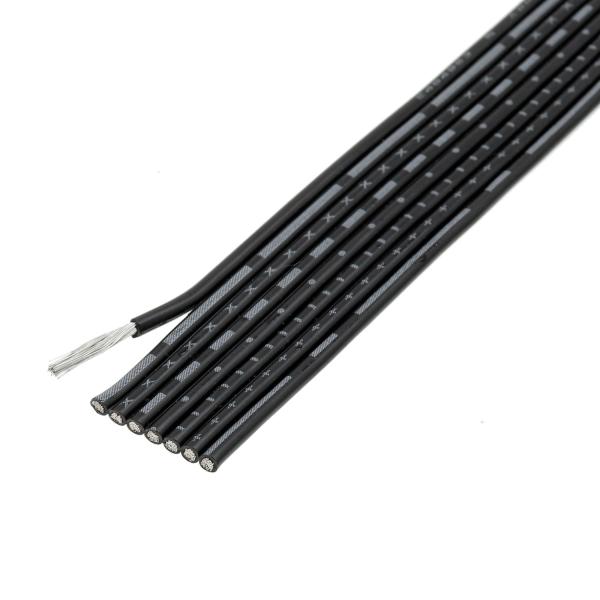

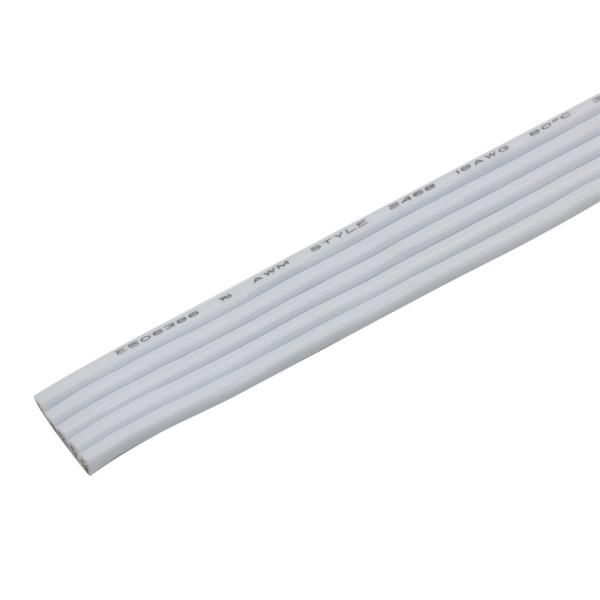

Awm 2468 Twin Cable UL Wire VW-1 Electric Wire PVC Insulation Flat Cable
Awm 2468 Twin Cable UL Wire VW-1 Electric Wire PVC Insulation Flat Cable
Awm 2468 Twin Cable UL Wire VW-1 Electric Wire PVC Insulation Flat Cable
Awm 2468 Twin Cable UL Wire VW-1 Electric Wire PVC Insulation Flat Cable
Awm 2468 Twin Cable UL Wire VW-1 Electric Wire PVC Insulation Flat Cable
Awm 2468 Twin Cable UL Wire VW-1 Electric Wire PVC Insulation Flat Cable
Specifications
Brand Name :
XSD Cable
Model Number :
Flat Wire Cables
Place of Origin :
Guangdong,China
Certification :
UL,CE,ISO:9001
Price :
Negotiate
Delivery Time :
7-30days
Payment Terms :
T/T
Application :
Internal Wiring of Appliances,Computer
Ul Certification :
ISO9001, CCC, RoHS, cUL, IATF 16949
Ul Style :
2468
Strandard :
UL758, UL1581, C22.2 No.210
Rated Temperature :
80°C
Color :
Black/Grey
Description

Product Description:

-Rated temperature: 80ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance, computer, IDC connector, mainframe, speaker, lighting, electronics, wiring harness, etc.

Technical Parameters:


Conductor Insulation Max. Cond. Resistance at 20°C
(Ω/km)
No. of Cores AWG Construction
(No./mm)		 Diameter
(mm)		 Thickness
(mm)		 Diameter
(mm)
2 28 7/0.127 0.38 0.43 1.24X2.58 239
2 26 7/0.16 0.48 0.43 1.34X2.78 150
2 24 7/0.2 0.60 0.43 1.45X3.04 94.2
2 22 7/0.254 0.76 0.43 1.62x3.34 59.4
2 20 26/0.16 0.94 0.43 1.80X3.70 36.7
2 18 41/0.16 1.18 0.43 2.04X4.23 23.2
3 28 7/0.127 0.38 0.43 1.24X3.92 239
3 26 7/0.16 0.48 0.43 1.34X4.22 150
3 24 7/0.2 0.60 0.43 1.45X4.63 94.2
3 22 7/0.254 0.76 0.43 1.62X5.06 59.4
4 28 7/0.127 0.38 0.43 1.24X5.26 239
4 26 7/0.16 0.48 0.43 1.34X5.66 150
4 24 7/0.2 0.60 0.43 1.45X6.22 94.2
4 22 7/0.254 0.76 0.43 1.62X6.78 59.4
5 28 7/0.127 0.38 0.43 1.24X6.60 239
5 26 7/0.16 0.48 0.43 1.34X7.10 150
5 24 7/0.2 0.60 0.43 1.45X7.81 94.2
5 22 7/0.254 0.76 0.43 1.62X8.50 59.4
6 28 7/0.127 0.38 0.43 1.24X7.94 239
6 26 7/0.16 0.48 0.43 1.34X8.54 150
6 24 7/0.2 0.60 0.43 1.45X9.40 94.2
6 22 7/0.254 0.76 0.43 1.62X10.22 59.4
7 28 7/0.127 0.38 0.43 1.24X9.28 239
7 26 7/0.16 0.48 0.43 1.34X10.0 150
7 24 7/0.2 0.60 0.43 1.45X11.00 94.2
7 22 7/0.254 0.76 0.43 1.62X11.94 59.4
The above datasheet is for reference only, please refer to the final specification.
UL AWM Listing
SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953)
Table of UL AWM Recognized Styles
Single-conductor, thermoplastic insulation.
1007 1061 1330 1333 1569 10070 10362 11627
1013 1180 1331 1430 1571 10183 10368
1015 1185 1332 1431 1589 10269 10702
Multiple-conductor, thermoplastic insulation.
2464 2517 2648 2678 2835 20276 21370
2468 2547 2651 2725 20080 21016 21513
2570 2586 2587
Single-conductor, thermoset insulation.
3173 3266 3289 3321 3386 3656
3196 3271 3302 3385 3619
Multiple-conductor, thermoset insulation.
4478
DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386)
Table of UL AWM Recognized Styles
Single-conductor, thermoplastic insulation.
1007 1015 1061 1430 1569 10070 10269 11627
1013 1032 1185 1431 1571 10183 10368
Multiple-conductor, thermoplastic insulation.
2464 2517 2570 2587 2725 20276
2468 2547 2586 2651 2835
Single-conductor, thermoset insulation.
3173 3266 3289 3321 3386
3196 3271 3302 3385 3656

FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is XSD Cable.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in Guangdong, China.
  • Q: What certifications does this product have?
  • A: This product is certified by UL, CE, and ISO:9001.
  • Q: Is the price of this product negotiable?
  • A: Yes, the price of this product is negotiable..
  • Q: What is the estimated delivery time for this product?
  • A: The estimated delivery time for this product is 7-30 days.
  • Q: What are the accepted payment terms for this product?
  • A: The accepted payment terms for this product are T/T.
