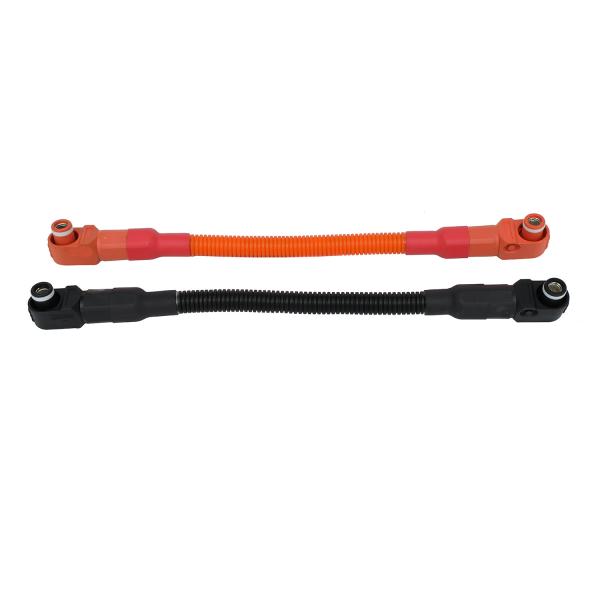

6mm Solar Cable Assembly 120A Waterproof Connector Plug To Plug Solar Harness Solar Cable Salt Spray Test
6mm Solar Cable Assembly 120A Waterproof Connector Plug To Plug Solar Harness Solar Cable Salt Spray Test
6mm Solar Cable Assembly 120A Waterproof Connector Plug To Plug Solar Harness Solar Cable Salt Spray Test
6mm Solar Cable Assembly 120A Waterproof Connector Plug To Plug Solar Harness Solar Cable Salt Spray Test
Specifications
Brand Name :
XSD Cable
Model Number :
Solar Cable Assembly
Place of Origin :
Guangdong,China
Certification :
UL,CE,ISO:9001,VDE
MOQ :
300sets
Price :
Negotiate
Packaging Details :
32*27*17CM
Delivery Time :
7-30days
Payment Terms :
T/T
Supply Ability :
200000pcs/month
Size :
1mm2~120mm2
Rated Current :
60A~600A
Rated Voltage :
300V~2000V
Operating Temp :
-40℃~125℃
Description

6mm 120A Waterproof Connector Plug To Plug Solar Harness

Product Description:

Product 6mm 120A Waterproof Connector Plug to Plug Solar Harness
Plug/Socket Rated Current 60A~600A
Rated Voltage 300V~2000V
Operating Temp. -40℃~125℃
Wire Model NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
Size 1mm2~120mm2
Lug/Terminal Model SC1.5~SC120
Applicable Wire Range 1mm2~120mm2
Crrugated Pipe Optional
Features IP67 Waterproof, Flame Retardant, High Temperature Retardant
Touch Proof, Safe Handling, Durable Design, Reliable Connection
Quick Lock, Press-to-Release Design, High Pressure Resistance
Application Solar Energy Storage System(ESS)
Energy Storage Cabinet, Battery Pack, Battery Storage Tank
Energy Storage Converter, Power Energy Storage System
Verification UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
OEM Welcomed

Technical Parameters:

Plug Datasheet

1. Material
Shell: PA66+30%GF
Electrical Copper Row: Brass, Sliver-plated
2. Electrical Performance
Rated Current: 60A,100A,120A,150A,200A, 350A
Rated Voltage: DC690V
Impulse Withstand Voltage: AC5000V, Leakage≤1mA
Insulation Resistance: DC1000V, Resistance Value≥1000MΩ
3. Operating Environment
Operating Temp.: -40℃~125℃
Operating Humidity: 5%~95%RH
Flame Resistance: UL94 V-0
Salt Spray Test: 48H

Socket Datasheet

1. Material
Shell: PA66+30%GF
Electrical Copper Row: Brass, Sliver-plated
2. Electrical Performance
Rated Current: 100A, 150A, 200A, 250A, 350A
Rated Voltage: DC690V
Impulse Withstand Voltage: AC5000V, Leakage≤1mA
Insulation Resistance: DC2500V, Resistance Value≥2000MΩ
3. Operating Environment
Operating Temp.: -40℃~125℃
Operating Humidity: 5%~95%RH
Flame Resistance: UL94 V-0
Salt Spray Test: 48H

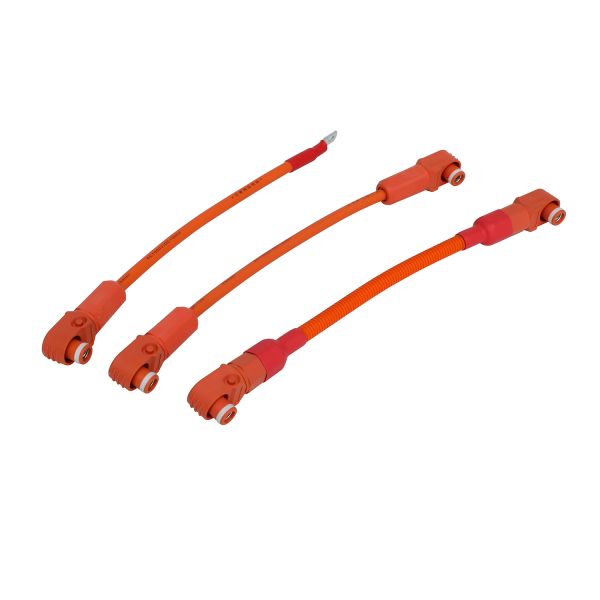

6mm Solar Cable Assembly 120A Waterproof Connector Plug To Plug Solar Harness Solar Cable Salt Spray Test

Packing and Shipping:

Packaging and Shipping for Solar Cable Assembly:
  • The Solar Cable Assembly will be carefully packaged in a sturdy cardboard box to ensure safe transportation.
  • The box will be labeled with the product name, quantity, and any necessary handling instructions.
  • Inside the box, the Solar Cable Assembly will be wrapped in bubble wrap to provide extra protection during shipping.
  • The box will also contain an instruction manual and any necessary accessories.
  • The package will be sealed with tape to prevent any contents from falling out during transit.
  • For shipping, the package will be loaded onto a pallet and secured with straps and shrink wrap.
  • The pallet will be labeled with the product name, quantity, and shipping address.
  • The package will be shipped via air or sea, depending on the customer's preference and location.
  • Proper documentation and customs forms will be included for international shipments.
  • Customers can also choose to have the package expedited for quicker delivery.
