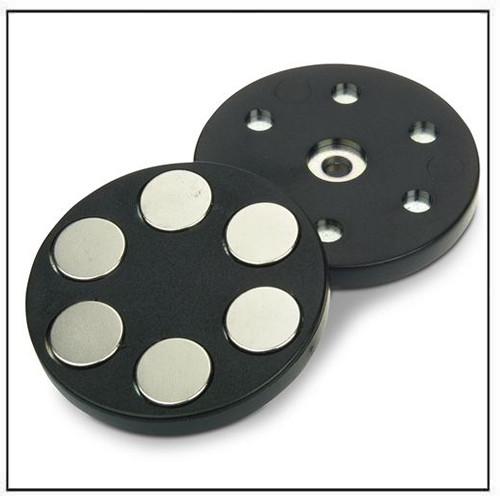

Disc rubber coated pot magnets 12 pcs of D14 x 3mm magnet inside neodymium gripping magnet
Disc rubber coated pot magnets 12 pcs of D14 x 3mm magnet inside neodymium gripping magnet
Specifications
Place of Origin :
China(Mainland) Guangdong
Brand Name :
WIT MAGNET
Certification :
ROHS,REACH,ISO9001:2008
Model Number :
N42
MOQ :
50pcs
Price :
FOB USD 0.015-0.98 per piece
Packaging Details :
Stadard air packing, Box+Foam+Metal.
Delivery Time :
7 business days-12days
Payment Terms :
T/T.Western Union. Paypal
Supply Ability :
200000 pieces per day (According to size)
Material :
Neodymium magnets
Coating :
Rubber
Max. working temperature :
80°
Diameter :
35mm
Height :
5mm
Weight :
20g
Magnetism :
N35
Description

Disc rubber coated pot magnet 12 pcs of D14 x 3 neodymium gripping magnet

Rubber Magnetic Assembly
The neodymium magnets in this group are entirely coated by a layer of rubber, which provides the following advantages:
Scratch protection: Delicate surfaces, such as whiteboards or magnetic glass boards, are well protected
Waterproof: These magnets are rustproof and can be used outdoors as long as the rubber coating stays intact
Friction: The rubber coat substantially increases the magnetic adhesive force in shear direction
Due to the rubber coating the maximum adhesive force of these magnets is slightly lower, however, compared to similar-sized neodymium magnets without coating.

Detailed Product Description

Grade: N35 Size: Dia*Thickness(mm/inch)
Coating: Rubber Shaped: Disc
Magnetization: Axial Direction Tolerance: +/-0.05mm

Standard Tolerance +/-0.05mm Neodymium magnets Uses in Telephone, Ipad

Specification:

Neodymium Disc Magnets

 Commodity Neodymium Disc Magnets
Grade/Model N35
Size Dia*T(mm)
Intrinsic Coercivity Hcj 12 KOe
Remance Br 11.7-12.2 KGs
Working temperature Less than or equal to 80°C

Note:

We can work for many Grade/Model. N35, N38, N40, N42, N45, N48, N50, N52 High grade also can be worked, like N35H-N48H

Grade

 Residual Induction Coercive Force Intrinsic Coercive Force Maximum Energy Product Maximum Operating
(Br) (Hc) (Hci) (Bhmax) Temp
(G) (mT) (Oe) (KA/m) (kOe)min (kA/m)min (MGOe) (KJ/m3) (°C)
35 11700 1170 10900 868 17 1353 35 279 <80
38 12200 1220 11300 899 17 1353 38 303 <80
40 12500 1250 11600 923 17 1353 40 319 <80
42 12800 1280 12000 955 17 1353 42 335 <80
45 13200 1320 12100 963 17 1353 45 359 <80
48 13700 1370 12500 955 17 1353 48 382 <80

Surface Coating

Thickness

(Microns)

 Color Resistance
Passivation 0-1 Silver Grey Temporary Protection
Nickel Ni+Ni 10-20 Bright Silver Excellent against Humidity
Ni+Cu+Ni
Zinc Zn 8-20 Bright Blue Good Against Salt Spray
C-Zn Shinny Color Excellent Against Salt Spray
Tin Ni+Cu+Sn 15-20 Silver Superior Against Humidity
Gold Ni+Cu+Au 10-20 Gold Superior Against Humidity
Copper Ni+Cu 10-20 Gold Temporary Protection
Epoxy Epoxy 15-25 Black, Red, Grey Excellent Against Humidity & Salt Spray
Ni+Cu+Epoxy
Zn+Epoxy
Chemical Ni 10-20 Silver Grey Excellent Against Humidity
Parylene Parylene 5-20 Grey

Excellent Against Humidity, Salt Spray.

Superior Against Solvents, Gases,

Fungi and Bacteria.

Why Choose Us?

1.We are a professional magnet manufacturer since 2006. Our plating factory is the benchmark in the Shenzhen

NdFeB industry.

2. No returned goods for five years in Europe market.

3. We provide magnets for a dozen of Fortune Global 500 enterprises such as Apple, Samsung, Lenovo etc.

4. In Europe market, 80% permanent magnets used for range hood are from WITHIGH Magnet Co.,Ltd.

5.Our company is the main supplier of American top wine box.

6.With rich exporting experiences with neodymium magnets, we build supply chain to offer neodymium magnets

with professional service.
