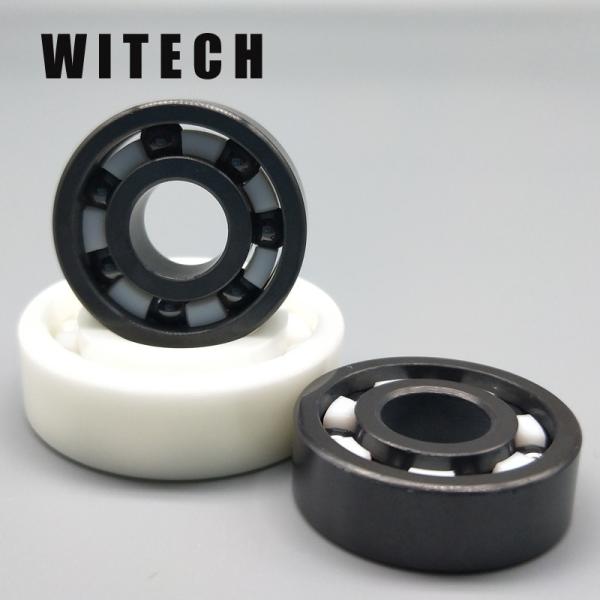

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings
High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings
High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings
High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings
High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings
High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings
High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings
High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings
Specifications
Brand Name :
WI-TECH
Model Number :
6811
Place of Origin :
China
MOQ :
10 pcs
Price :
12USD--5000USD
Payment Terms :
T/T, Western Union
Supply Ability :
100,000 pcs/month
Delivery Time :
10-30 days
Packaging Details :
Carton
Product name :
Hybrid Ceramic Ball Bearings
Type :
Ball bearing
Structure :
Deep Groove Ball Bearing
Rings :
Si3N4
Balls :
Si3N4
Cage :
PTFE, PEEK, Nylon
Bore size :
3 - 120 mm
Precision rating :
P0 P6 P5 P4 P2, ABEC1，3，5，7
Number of row :
Single Row
Seals type :
Open or Sealed
Outside diameter :
10 - 700 mm
Service :
OEM/ODM
Application :
Machinery,Engine,Finger Spinner/Medical Devices/Skateboard
Lubrication :
No grease
Feature :
Long Life High Speed,low noise,Long Life .durable,High Precision
Package :
Cartons Plastic Tube
Clearance :
C2 C0 C3 C4 C5
Size :
10*30*9mm ~ 25*52*15mm
Sample :
Available
Delivery :
Air Express, Ocean Shipping
Description

High Precision Hybrid Ceramic Bearings, CE6811 Si3n4 Ceramic Ball Bearings

Ceramic bearings are comprised of ceramic rolling elements (balls) enclosed in a ferrous (typically steel)

inner and outer race. Since these bearings are constructed from many materials, they often operate in

hybrid capacities. We also build ceramic bearings (i.e., bearings with ceramic races), but they are not as

common because they are less durable.

Some additional applications of ceramic bearings include:

  • High-speed mills
  • High-speed machining
  • Precision instruments
  • Pumps and compressors

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

Si3N4 Hybrid CERAMIC DEEP GROOVE BALL BEARING CE61811

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

Specification of Deep Groove Ball Bearing ZrO2 /Si3N4 /SiC /Al2O3 /POM
Bearing Model Bore Dia Outer Dia Width Dynamic Radial Static Radial Max Speed
(d) (D) (B) (Newtons) (Newtons) (X1000 RPM)
602 2 mm 7mm 2.8mm 98.4 30.9 42.6
603 3 mm 9mm 3mm 69 45.3 40.2
604 4 mm 12mm 4mm 244.2 84 33.6
605 5 mm 14mm 5mm 339 121.8 30
606 6 mm 17mm 6mm 577.2 203.1 27
607 7 mm 19mm 6mm 595.8 215.1 25.8
608 8mm 22mm 7mm 839.7 330.9 24
609 9mm 24mm 7mm 855.9 346.5 22.8
6000 10 mm 26mm 8mm 1365 585 21.6
6001 12 mm 28mm 8mm 1530 720 19.2
6002 15 mm 32mm 9mm 1680 855 16.2
6003 17 mm 35mm 10mm 1800 975 15
6004 20 mm 42mm 12mm 2820 1515 12.6
6005 25 mm 47mm 12mm 3030 1755 10.8
6006 30 mm 55mm 13mm 3960 2475 9
6007 35 mm 62mm 14mm 4770 3090 7.8
6008 40 mm 68mm 15mm 5010 3450 7.2
6009 45 mm 75mm 16mm 6300 4530 6.6
6010 50 mm 80mm 16mm 6540 4980 5.94
6011 55 mm 90mm 18mm 8490 6360 5.4
6012 60 mm 95mm 18mm 8820 6960 5.1
6013 65 mm 100mm 18mm 9150 7560 4.8
6014 70 mm 110mm 20mm 11430 9270 4.26
6015 75 mm 115mm 20mm 11880 10050 4.02
6016 80 mm 125mm 22mm 14280 11940 3.78
6017 85 mm 130mm 22mm 14850 12930 3.6
6018 90 mm 140mm 24mm 17460 14910 3.36
6019 95 mm 145mm 24mm 18120 16170 3.18
6020 100 mm 150mm 24mm 18060 16260 3.18
6021 105 mm 160mm 26mm 21690 19740 2.88

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings

High Precison Hybrid Ceramic Ball Bearings, CE6811 Si3N4 Ceramic Ball Bearings
