WNK 4 - 20mA 0.5 - 4.5V Water Pressure Transmitter Sensor For Air Gas
WNK 4 - 20mA 0.5 - 4.5V Water Pressure Transmitter Sensor For Air Gas
WNK 4 - 20mA 0.5 - 4.5V Water Pressure Transmitter Sensor For Air Gas
WNK 4 - 20mA 0.5 - 4.5V Water Pressure Transmitter Sensor For Air Gas
WNK 4 - 20mA 0.5 - 4.5V Water Pressure Transmitter Sensor For Air Gas
WNK 4 - 20mA 0.5 - 4.5V Water Pressure Transmitter Sensor For Air Gas
Specifications
Brand Name :
WNK
Model Number :
WNK80MA
Certification :
CE/ROHS
Place of Origin :
Anhui, China
Price :
$8.90 - $29.90/Pieces
Supply Ability :
30000 Piece/Pieces per Month 3.3V pressure transducer
Packaging Details :
paper carton or as per clients' requirement
Warranty :
1 YEAR
Customized support :
OEM, ODM
Pressure range :
0-70Mpa
Accuracy :
0.5%FS, 1%FS
Output :
I2C, SPI, 0.2-2.9V, 4~20mA, 0.5-4.5V and etc
Operation temperature :
-40~130C
Electrical connector :
DIN, Packard, Direct Cable, M12X1, Deustch
Ingress protection :
IP67
Respond time :
≥1ms
Overload :
2x FS
Proof pressure :
3x FS
Pressure Port :
G1/4, G1/2 ,1/8NPT, 1/4NPT, other
Port :
Shanghai, Tianjin,
Description

WNK 4-20mA 0.5-4.5V Water Pressure Transmitter Sensor For Air Gas

WNK 4-20mA 0.5-4.5V Water Pressure Transmitter Sensor

Product Description

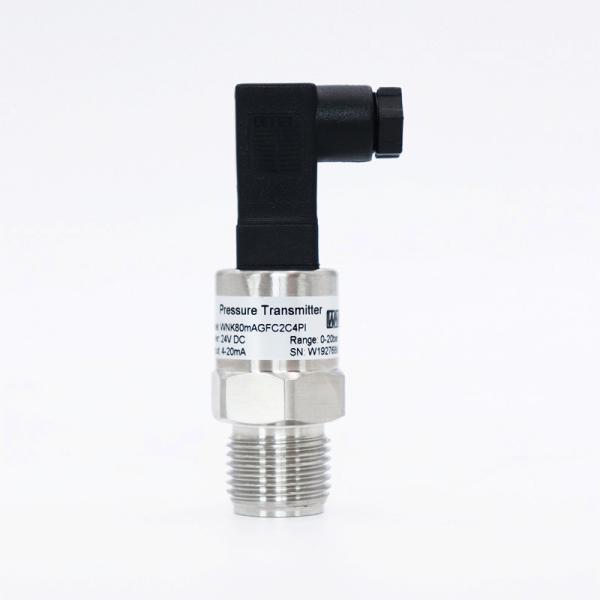

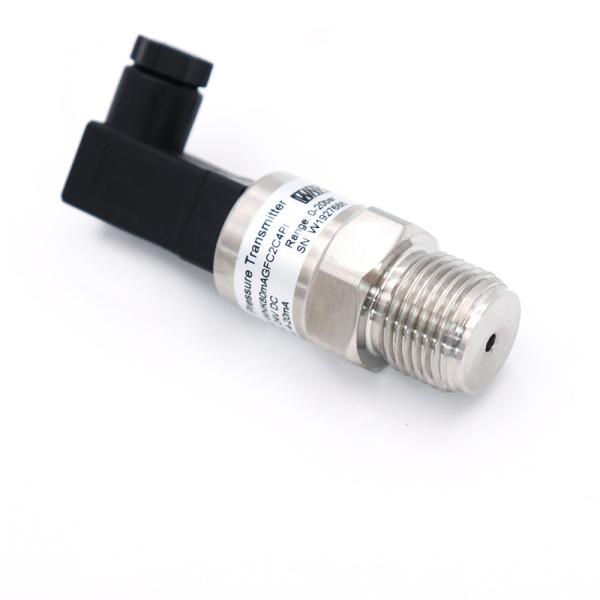

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-70Mpa
Pressure measurment
Gauge Pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65

Product Show

Company Information

Exhibition

Certification

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
